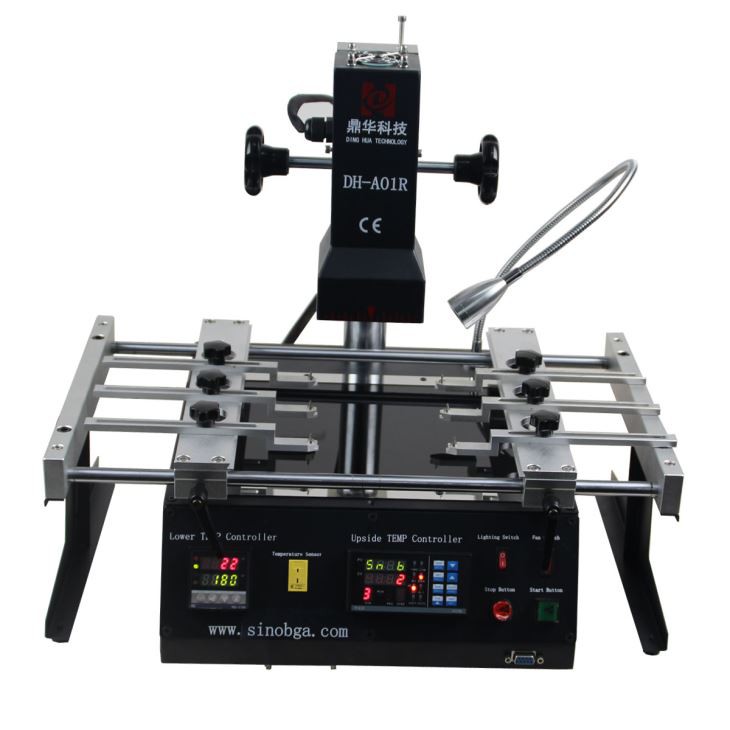

IR6500 rework chaw nres tsheb
1. Cov Khoom Taw Qhia (1) 2 qhov chaw kub kub, sab saum toj infrared rhaub, hauv qab infrared preheating cheeb tsam (2) Nrog tempering iav, ntau yam cua sov (3) Kub muag qauv, qhuas los ntawm ntau cov neeg muas zaub. (4) Txog 8 ntu kev tswj qhov kub thiab txias, 10 pawg profile cia rau txawv BGA qhov kev ua haujlwm ...
Hauj lwm lawm
1.Khoom Taw Qhia
(1) 2 qhov chaw kub kub, lub tshuab hluav taws xob sab saum toj infrared, hauv qab infrared preheating cheeb tsam
(2) Nrog tempering iav, ntau yam cua sov
(3) Kub muag qauv, qhuas los ntawm ntau tus neeg muas zaub.
(4) Txog 8 ntu kev tswj qhov kub thiab txias, 10 pawg profile cia rau txawv BGA txoj haujlwm ua haujlwm.
2.Specifications
Tag Nrho Lub Zog | 2300W |
Lub tshuab cua sov sab saum toj | 450W |
Hauv qab rhaub | 1800W |
Hwj chim | AC220V ± 10% 50/60Hz |
Sab saum toj lub taub hau txav | Up / down, tig dawb do. |
Teeb pom kev zoo | Taiwan coj lub teeb ua haujlwm, txhua lub kaum sab xis hloov kho. |
Cia | Khaws 10 pawg ntawm qhov kub thiab txias profile |
Qhov chaw | V-groove bracket ntxiv rau universal fixture |
Kev tswj qhov kub thiab txias | K Sensor, kaw lub voj |
Temp raug | ± 2 degree |
PCB loj | Max 270mm * 320mm Min 20mm * 20mm |
BGA chip | 5 * 5 ~ 55 * 55 hli |
3.Cov khoom siv zog thiab kev siv
DH -6500 khoom zog
(1) High precision kub tswj, yuav tsis ua rau tsis muaj vuam lossis txuas vuam.
(2) Super siab kho qhov ua tau zoo, vim qhov siab precision temp tswj thiab cov kab ke kho qhov muag pom tseeb.

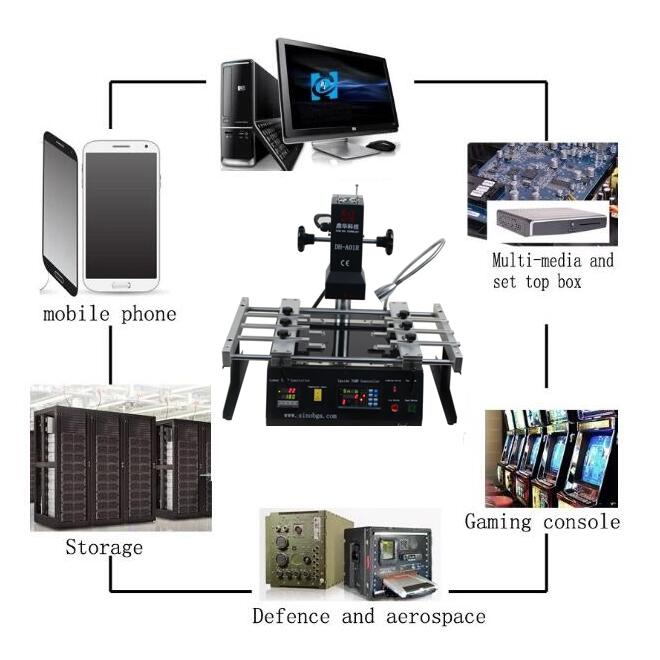

Kev siv ntau yam: tuaj yeem rov ua haujlwm BGA, PGA, POP, BQFP, QFN, SOT- 223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED nti hauv motherboards ntawm cov khoom siv hluav taws xob. Kho kev vam meej tus nqi 99 feem pua.

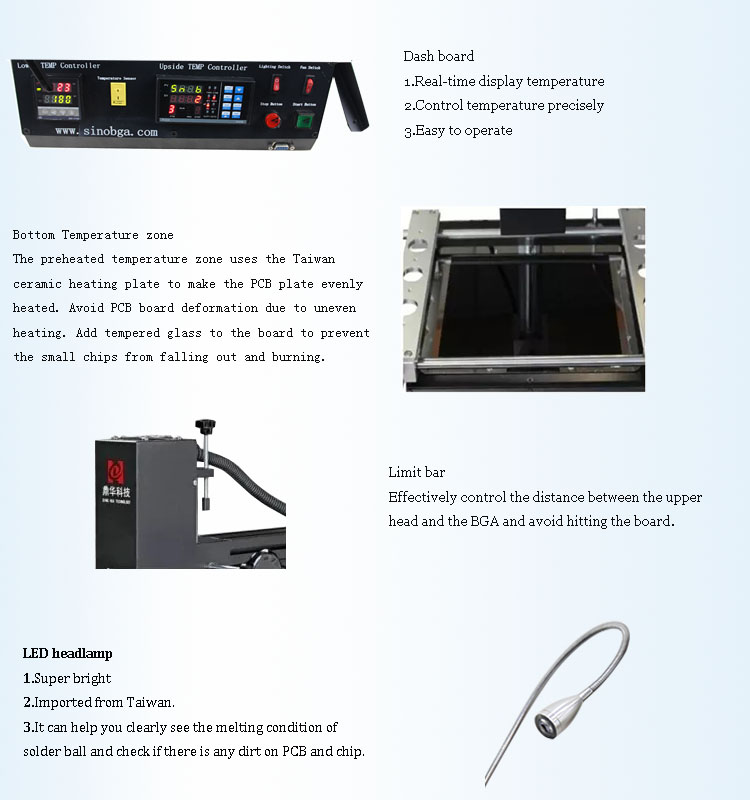

4.Product details
(1) Multi-functional keyboard tswj chaw
(2) Ntxiv me me infrared preheating cheeb tsam, npog nrog tempering iav, cua sov ntau tusyees
(3) txwv bar tiv thaiv
(4) High brightness LED ua haujlwm lub teeb
5.Cov ntawv pov thawj
Cov tshuab yog CE, ISO9001 pom zoo.
6.Peb cov kev pabcuam
Tag nrho peb cov chaw ua haujlwm BGA tau ntim khoom nyab xeeb rau kev thauj mus los.
Peb Cov Kev Pabcuam
1. Koj qhov kev nug yuav teb rau hauv 24 teev;
2. Muab cov khoom seem dawb thiab cov kev pabcuam tsis pub dhau ib xyoos ntawm kev lees paub, tab sis tag nrho cov nqi txheeb ze yuav tsum nyob ntawm tus neeg yuav khoom tus account;
3. Kev them nyiaj yug Technology: Muab Demo ua haujlwm video rau kev cob qhia; Yog tias koj muaj sijhawm, txais tos rau peb lub tuam txhab, peb yuav muab kev cob qhia dawb;
4. Kev pabcuam zoo thiab kev pabcuam tomqab muag;
7.FAQ
(1) BGA nti kho cov kauj ruam yog dab tsi?
1) Tshem tawm BGA chipset los ntawm PCB motherboard, nws yog hu ua desoldering.
2) Ntxuav lub ncoo.
3) Kev Tu thiab Reballing BGA lossis hloov nws nrog ib qho tshiab ncaj qha ---yuav tsum tau siv cov khoom siv reballing thiab accessories
4) Tso lub BGA chipset ---BGA rework chaw nres tsheb nrog lub koob yees duab kho qhov muag tuaj yeem pab koj ua haujlwm tau yooj yim thiab ua tau zoo.
5) Soldering BGA chipset rau PCB
(2) Kuv puas tuaj yeem muaj kuv LOGO ntawm kuv cov khoom?
A: Yog, Peb tuaj yeem muab LOGO silk-screen, qhov ntxa. Tus nqi LOGO tuaj yeem pub dawb thaum txiav txim kom muaj nuj nqis ncav cuag qhov xav tau.
(3) Lub sijhawm khoom xa tuaj ntau yog dab tsi?
A: Lub sij hawm xa tuaj ntau yuav yog 5-10 hnub ua haujlwm.
