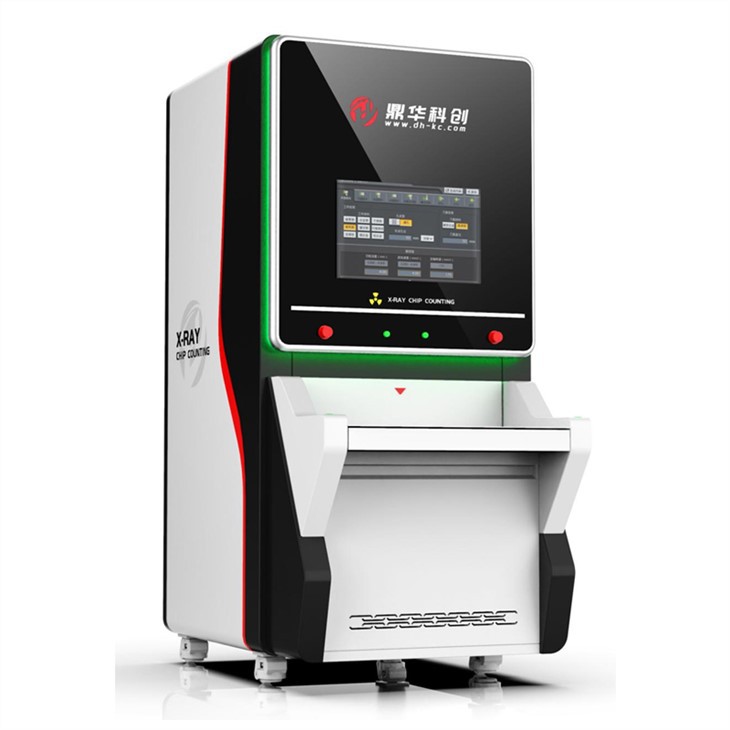

X-ray Suav Tshuab

X-ray counting machine used for massive parts/components, such as, chip ,01005,0102, LED and others etc.

Hauj lwm lawm

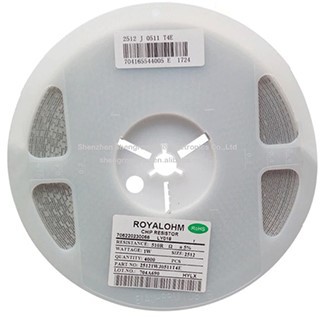

X-Ray Recing tshuab siv X-ray kev ua yeeb yam rau tsis yog-kev ua kom cov chips sib tsoo thiab tshuaj pleev thiab ICS-ntau thaum tseem ntim ntawm reels lossis tais. Nws irradiates cov txheej txheem, captures cov duab ntawm tiaj-vaj huam sib luag detectors, thiab siv cov duab kev ntsuas duab ib qho uas tau suav kom xa cov cai thiab cov lus qhia zoo. Cov txheej txheem yog tag nrho cov lus cia siab thiab tsis xav tau qhib lub ntim.

Mas siv rau cov khoom siv sai sai Nws yog sib xws nrog txhua cov ntaub ntawv tiv thaiv thiab capacitance cov ntaub ntawv thiab tuaj yeem interface nrog cov qhua tuaj siv cov ntaub ntawv cov ntaub ntawv kev koom ua ke.

X-Ray Suav Tshuab Nta:

Yuav kom nrawm laij thiab ntes cov tshuab hluav taws xob thiab cov khoom siv hluav taws xob xws li 7-17 nti pallets / iC.
Tsis siv neeg coding thiab ruam-pov thawj sau npe
Ib 17-inch cov khoom tais lossis plaub 7-nti cov tais
Ai Algorithm Docking Cov Neeg Siv Khoom

Cov lus ntawm X-Ray Suav Suav Tshuab:

Tag nrho cov txheej xwm	Qho loj dav	1440 * 890 * 1930 hli
	Qhov hnyav	850kg
	Kev pab fais fab	220V 50 / 60Hz
	Rated zog	1.5kW
	Siv tau MIN Cheebtsam	01005
	Li tseem	Nrog lub tshuab luam ntawv los luam ncaj qha
	Tswj System	PC Win10 (Windows System)
	Qhov siab rau reel tais	Tsawg dua 85 hli
Xoo hluav taws xob	Lub Teeb Tube Hom	Kaw lawm
	Lub teeb raj voltage	80Kv
	Lub Taj Tube Txiaj Ntsig	1000μA
	Max Tso Tawm Zog	60W
	Tsom Ntsig	0.07mm
Kev Ntsuam Xyuas System	Tus kuaj tsheb	HD fpd
	Nta Ntiag Tug	432 * 435mm
	Pixel matrix	10 lab pixels
	Tus ncej	FPS
	Ad ntseeg siab	16 Khoom
	Pixel loj	139 um
Suav Kev Ncaj Ncees	Lus ntawv rov ua tais	tsawg dua los yog sib luag 17 ''
	Min reel ntaub ntawv khoom	7''
	Kev ua yog	99.999%
	Suav Sijhawm	Tsawg dua 10s rau ib zaug (1 lub tais loj lossis 4 lub tais me)
	Min thickness ntawm tais	3 hli
	Cov tais tas	Feem ntau ntawm cov tais (kav ntev los hloov kho rau qhov ntev dua)
Lwm tus	Barcode scan	Lub Koob Yees Duab Nruab Sab Hauv, Tsis Siv Neeg Ib-Sab 2D Bar Code Scanner
	Daim ntawv lo	Cia li luam tawm barcodes los yog txuas lub erp / mes system hauv series
	Kev Ntsuas Xyuas	Kev tsim tawm, capacitors, inductors, siv lead ua, leds, diodes, transistors, ntau tus kheej ics, thiab lwm yam
	Software	Txhawb cov txheeb cais SPC hauv ib hom ntawv, tsis siv neeg txuag cov duab thiab cov txiaj ntsig
	Tso cov khoom siv	Ua hauj lwm
	Kev Ntsuam Xyuas Txoj Kev	tawm-kab
	Kev tso cai	Lo lus zais
