Tuam Tshoj Tsis Siv Neeg Bga Rework Chaw Muag Khoom

                                                 Tuam Tshoj tsis siv neeg bga rework chaw nres tsheb tsum

DH-A2E tsis siv neeg BGA rework tshuab yog kev koom ua ke ntawm cov cua kub thiab IR (infrared) cua sov txoj kev uas zoo dua

dua li cov uas muaj IR cua sov xwb, vim tias muaj PID & PPM tswj qhov kub thiab txias kom paub tseeb tias cua sov

yog ruaj khov thiab ruaj khov. bga kho tshuab



Zoo siv rau Tsheb computer, xov tooj ntawm tes, desktop, TV, cua txias, tub yees thiab lwm yam khoom siv

los yog cov cuab yeej siv tshuab. chip reballing tshuab



Khoom paramter

Fais fab mov	110 ~ 220V -/+10% 50/60Hz
Rated zog	4900W bga ic reballing tshuab
Lub tshuab cua sov	1200W ic reballing tshuab nqe
Lub tshuab cua sov qis	1200W
Hauv qab IR	2400W mobile xov tooj ic reballing tshuab (Npaj nthuav preheating square rau loj motherboards)
Kho cov khoom lag luam	Kho BGA, QFN, BFP, LED teeb- hlaws dai (kab kab xev lossis hauv ntau), tshwj xeeb thiab cov khoom siv refractory suav nrog CGA, BHA, QEN, CSP, LGA, microSMD, MLF (microleadfeames)
Hom kev ua haujlwm	Tsis siv neeg thiab phau ntawv hom yuav xaiv tau
Chip pub	Nrog ib tug neeg hlau txhais tes kom tau txais los yog muab, thiab pub los yog xaiv.
Profile Cia	100,000.00 pawg
Kev daws teeb meem piv	1920x1080, HD 1080p, FHD txhawb nqa



PCBA Positioning	nce thiab nqis ntse qhov chaw, hauv qab "5 taw tes txhawb" nrog v-type card qhov kho PCBA uas tuaj yeem hloov kho dawb hauv X-axis kev taw qhia, nrog rau sab nraud unive cov rsal
BGA txoj haujlwm	Laser positioning v-shaped card slots thiab universal fixtures
Kev tswj qhov kub thiab txias	K Sensor, kaw lub voj.8-channel kub tswj qhov system, PID & PPM tsis siv neeg kev cai
Temp raug	± 1 degree laptop bga tshuab
Txoj hauj lwm raug	± 0.01 hli
PCBa loj	400 * 450mm 10 * 10mm
Sab nraud Temperature Sensor	1 pcs (yeem)
Qhov ntev	L530 × W670 × H890 hli
Net nyhav	70kg ua

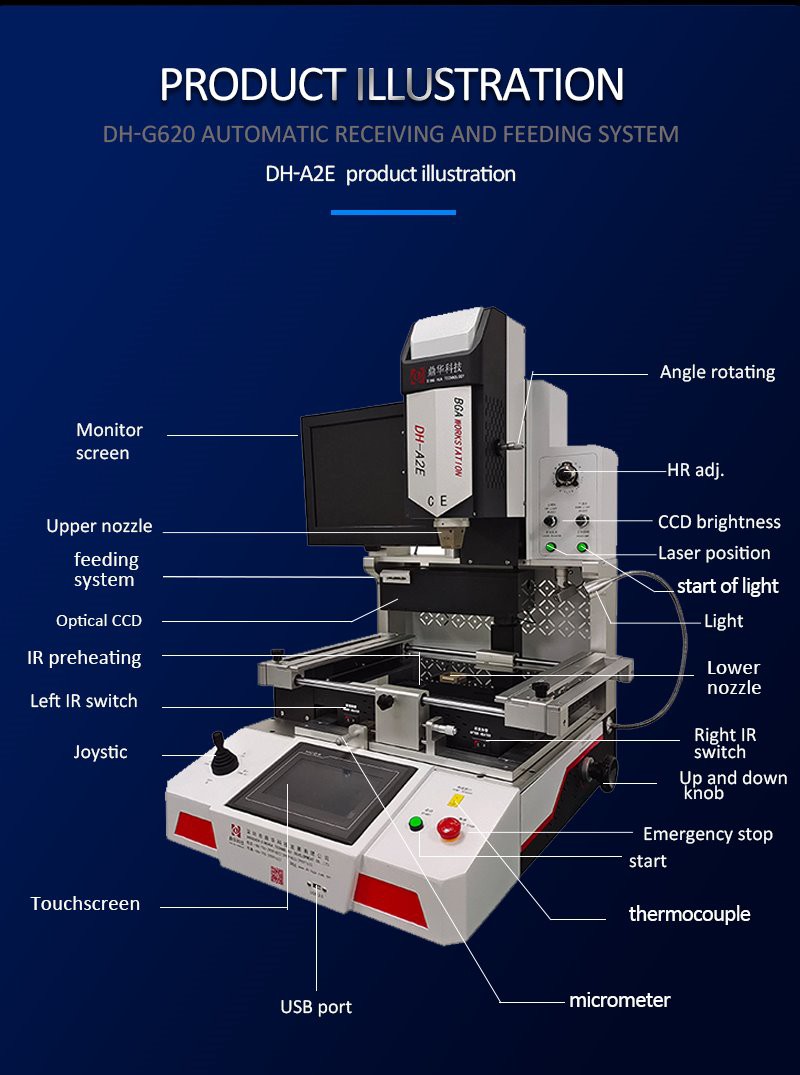

Product Illustration



Yam khoom	Muaj nuj nqi thiab kev siv
Saib xyuas lub vijtsam	Chip thiab motherboard duab rau ntawm
Upper nozzle	Kub-cua ntws sau
Pub noj system	Chip nqa tawm los yog siv dua
Optical CCD	Dots ntawm nti thiab PCBa duab
IR preheating	Infrared preheating cheeb tsam
Sab laug IR hloov	Qhib / tawm smd tshuab nqe
Zoo siab	Zoom hauv / tawm, lub taub hau nce / nqis (thaum manually)
Touchscreen	Kub profiles cia thiab ua haujlwm rau
USB chaw nres nkoj	Upload software thiab download profiles
Lub kaum sab xis tig	Chip Rotated rau aligning smd tshuab uas tsis muaj nqi

HR adj.	Kub-cua-flow kho ceev smd tshuab
CCD brightness	Brightness kho rau CCD
Laser txoj hauj lwm	Laser-dot taw tes ntawm qhov chaw ntawm lub nti
Pib ntawm lub teeb	Qhib / tawm cua kub soldering tshuab
Teeb	Teeb pom kev zoo
qis nozzle	Kub-cua ntws sau
Txoj cai IR hloov	Qhib / tawm
Up & down pob khawm	Txo lub cua sov nce lossis nqis
Thaum muaj xwm ceev nres	Tsis ua hauj lwm
Pib	Ua haujlwm mobile smd tshuab
Thermocouple	Sab nraud ntsuas qhov chaw nres nkoj
Micrometers	Rov qab / pem hauv ntej / sab laug / sab xis +/-15mm tshiab smd tshuab



Khoom piav qhia

Laser postiong--PCBa lossis nti ntawm nws txoj haujlwm sai sai; smd cua sov tshuab

Universal fixtures -- tsuas yog ua kom lub motherboard tsis raug kho. smd rework chaw nres tsheb flipkart



Cua kub thiab IR

Cov huab cua kub tswj los ntawm PID, infrared preheating tswj los ntawm PPM, thiab ob qho tib si tuaj yeem ua kom sov.

yog ruaj khov thiab ua haujlwm siab. tsis siv neeg smd tshuab



Kub profiles thiab nkhaus generated

Touchscreen nrog 7 ntiv tes, qhov ntsuas kub ntawm lub sijhawm tuaj yeem tshwm sim, tuav cov ntsuas kub raws li qhov xav tau

20ms los piv nrog qhov kub thiab txias tau teeb tsa manually, ib zaug muaj qhov sib txawv, PID & PPM yuav pib ua haujlwm tau txais

kho. tus nqi qis smd tshuab





Kev Paub Txog Kev Kho Kom Zoo Rau Computer:

Kev daws teeb meem thiab kev kuaj mob

Kauj ruam 01:

Ua ntej, txo cov khoom tsis tsim nyog pib:
Nyem "Pib → Tag Nrho Cov Kev Pabcuam → Accessories → Khiav" hauv ntu. Tom qab ntawd, nkag mus rau "msconfig" thiab hloov mus rau "Startup" tab hauv pop-up dialog box. Tshem tawm cov khoom tsis tsim nyog pib (raws li qhia hauv daim duab).

Nyob rau hauv ib txwm muaj xwm txheej, tsuas yog ib qho kev tawm tswv yim kev pab cuam thiab ib qho software antivirus yuav tsum tau khiav thaum pib. Cov kauj ruam no yog tsom rau kev txhim kho khau raj ceev. Qee qhov software optimization kuj tuaj yeem siv los ua kom tiav lub hom phiaj no. Lub tswv yim tseem ceeb yog lov tes taw cov khoom pib tsis tsim nyog.

Kauj ruam 02:

Tom ntej no, txo Windows 7 system startup display time:
Nyem "Pib → Tag Nrho Cov Kev Pabcuam → Accessories → Khiav" hauv ntu, tom qab ntawd nkag mus rau "msconfig" thiab hloov mus rau "Boot" tab hauv pop-up "System Configuration" dialog box. Lub kaum sab xis sab xis yuav tso saib lub sijhawm tos pib. Lub neej ntawd yog 30 vib nas this, tab sis feem ntau nws tuaj yeem luv luv rau 3 vib nas this, 5 vib nas this, thiab lwm yam (raws li qhia hauv daim duab).

Tom qab rov pib dua, koj yuav pom tias lub computer tsis qeeb lawm. Qhov tseeb, feem ntau cov khoos phis tawj qeeb tom qab siv lub sijhawm, tab sis qhov no tsis tshua muaj teeb meem kho vajtse. Tsuav koj muaj txoj hauv kev zoo, cov teeb meem no tuaj yeem daws tau yooj yim!

Muaj ntau yam piv txwv. Qhov tseeb, tsuav koj tuaj yeem txheeb xyuas qhov xwm txheej, feem ntau cov teeb meem hauv computer tuaj yeem kho tau yooj yim. Kuv yuav tsis muab tag nrho cov piv txwv ntawm no, tab sis kuv yuav qhia qee cov kauj ruam los daws cov teeb meem hauv computer. Cov no yog los ntawm cov kev paub dhau los uas tau sau los ntawm cov neeg ua ntej thiab qhia tawm ntawm no rau txhua tus neeg kawm los ntawm.

Tej teeb meem thiab kev daws teeb meem rau Computer Crashes

Cov tsos mob ntawm "Black Screen of Death" Thaum Ntxov:

Qhov teeb meem no tshwm sim thaum lub computer tsis tuaj yeem khau raj kom zoo, feem ntau hu ua "Black Screen of Death." Cov laj thawj tseem ceeb ntawm kev sib tsoo xws li:

1. Kev teeb tsa BIOS tsis raug.
2. Kev vibration lossis txav ntawm lub computer.
3. Plua plav ua rau corrosion ntawm circuits lossis interfaces.
4. Nco module tsis ua hauj lwm.
5. CPU overclocking.
6. Hardware compatibility teeb meem.
7. Cov teeb meem zoo nrog cov khoom siv kho vajtse.
8. Hloov tshiab BIOS ua tsis tiav.

Txoj kev los daws Startup Crashes:

Kauj ruam 01:
Yog tias lub khoos phis tawj sib tsoo tom qab tsiv mus, nws yuav yog vim muaj kev vibration thaum thauj. Qhov kev txav tuaj yeem ua rau cov khoom sab hauv kom xoob, ua rau muaj kev sib cuag tsis zoo. Hauv qhov no, qhib cov ntaub ntawv thiab rov ua lub cim xeeb, daim npav duab, thiab lwm yam khoom siv.

Kauj ruam 02:
Yog tias qhov kev sib tsoo tshwm sim tom qab hloov BIOS nqis, rov qab mus rau BIOS teeb tsa yav dhau los. Yog tias koj tsis nco qab cov chaw qub, koj tuaj yeem xaiv "Load Standard Defaults" hauv BIOS kom rov qab kho cov chaw.

Kauj ruam 03:
Yog tias qhov sib tsoo tshwm sim tom qab CPU overclocking, nws yuav yog vim overclocking. Overclocking ua rau muaj feem uas cov ntaub ntawv tsis tuaj yeem pom hauv lub cim xeeb lossis lub cim xeeb virtual, ua rau kev sib tsoo. Txhawm rau txhim kho qhov no, rov ua dua CPU zaus rau nws qhov chaw nyob.

Kauj ruam 04:
Yog tias koj pom cov lus xws li "Invalid Boot Disk," qhov no txhais tau tias cov ntaub ntawv kaw lus ploj lossis puas, lossis lub hard disk muab faib lub rooj puas. Koj tuaj yeem kho cov ntaub ntawv kaw lus lossis rov qab muab faib cov lus.

Kauj ruam 05:
Yog hais tias qhov teeb meem tsis daws tau los ntawm cov kauj ruam dhau los, xyuas lub chassis sab hauv kom huv si thiab xyuas kom meej tias txhua qhov kev sib txuas ntawm cov cuab yeej muaj kev ruaj ntseg. Plua plav tuaj yeem corrode circuits thiab interfaces, ua rau kev sib cuag tsis zoo ntawm cov khoom, uas ua rau kev sib tsoo. Ntxuav cov plua plav thiab rov txuas cov cuab yeej ruaj ntseg kom tshem tawm qhov teeb meem.

Kauj ruam 06:
Yog tias qhov teeb meem tshwm sim, sim hloov cov khoom siv los daws cov teeb meem kho vajtse lossis teeb meem zoo.

Ua rau muaj kev sib tsoo thaum lub sijhawm ua haujlwm pib

Cov laj thawj tseem ceeb ntawm kev sib tsoo thaum pib lub operating system yog:

1. Cov ntaub ntawv kaw lus ploj lossis puas lawm.
2. Kev kis kab mob vais lav.
3. Corrupted pib cov ntaub ntawv.
4. Kev kaw tsis raug ntawm lub computer.
5. Tsis zoo sectors ntawm lub hard disk.
