BGA Tshuab Nqe
Precise optical alignment thiab ntse nti-feeding & recycling ntaus ntawv, siv Mitsubishi PLC uas ua kom nws cov lus tsa suab ruaj khov thiab txhim khu kev qha.
Kub-cua thiab IR Integrated ntawm lub tshuab, tswj los ntawm PID thiab PPM, txawm li cas los xij loj lossis me motherboards, uas tuaj yeem ua haujlwm zoo ntawm lub tshuab BGA tsis siv neeg.
Hauj lwm lawm

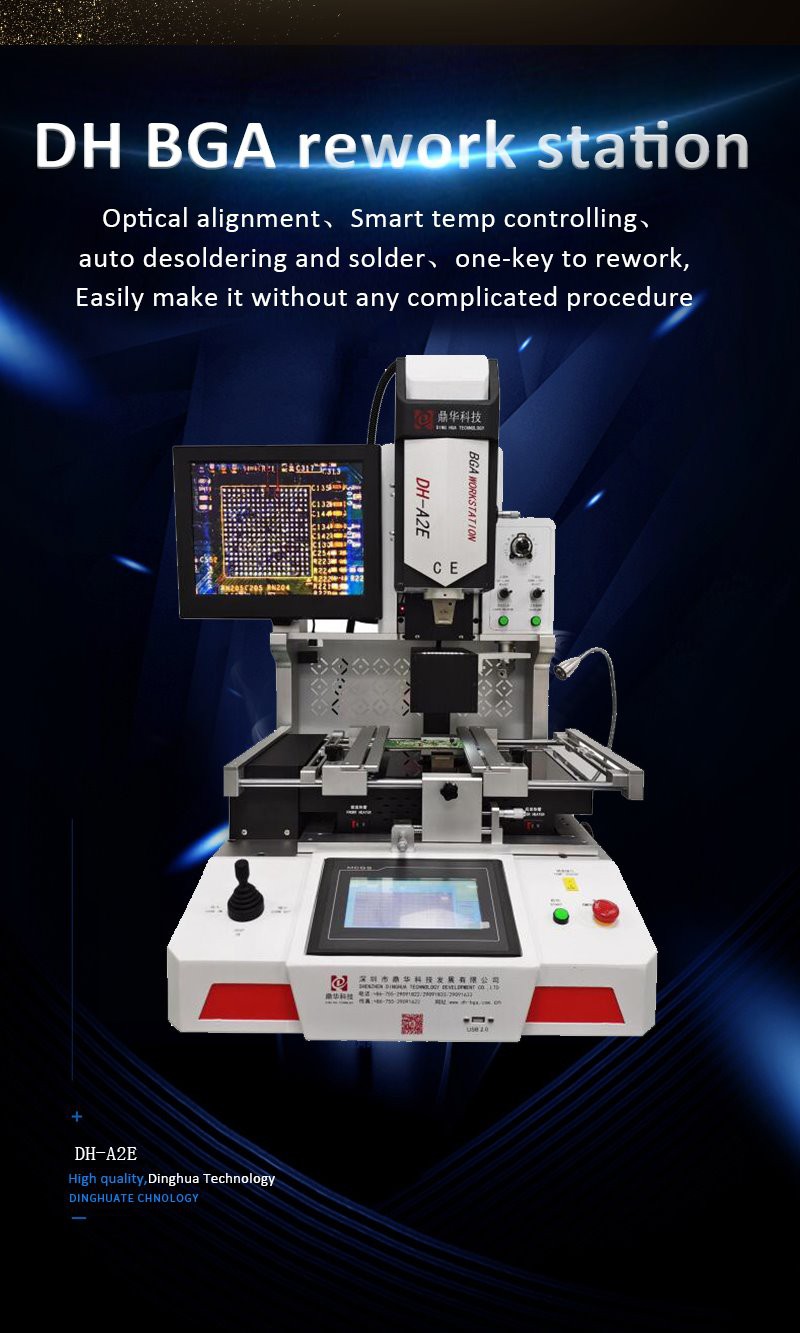

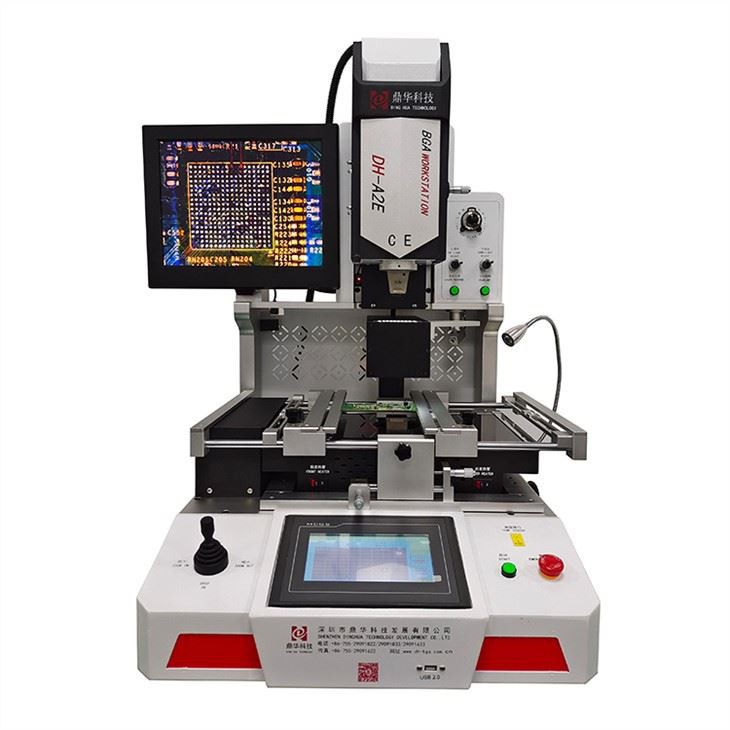

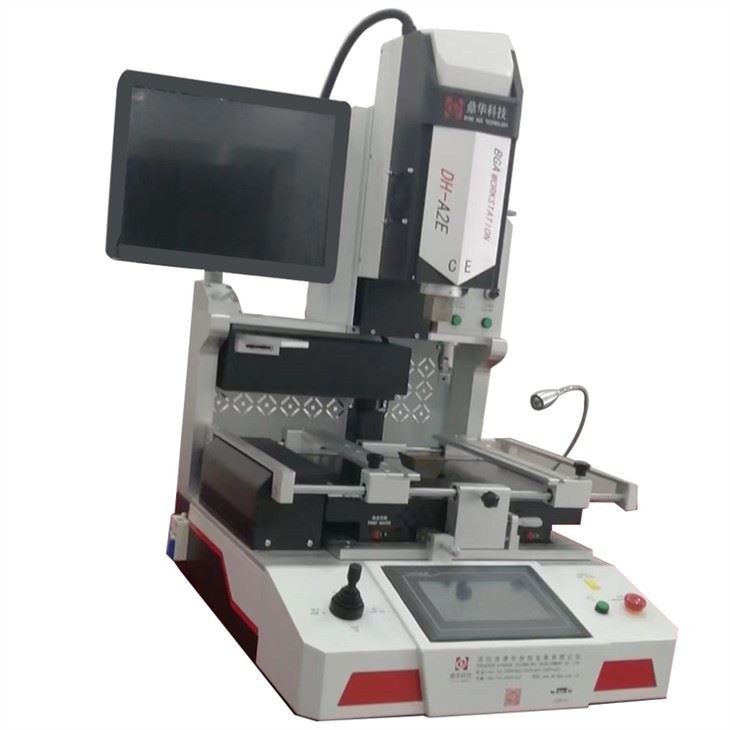

Tsis siv neeg BGA rework tshuab DH-A2E
High-sensitive touch screen thiab kub tswj module thiab PLC kauj ruam tsav thiab advanced nws tus kheej-tsim software
muaj BGA tshuab DH-A2E, siv rau cov neeg rau zaub mov, lub tsheb tswj qhov system, khoos phis tawj, xov tooj ntawm tes thiab tshuab miner
thiab lwm yam. BGA tshuab
Khoom paramter
| Fais fab mov | 110 ~ 220V +/-10% 50/60Hz |
| Rated zog | 4900W bga tshuab nqe |
| Lub tshuab cua sov | 1200W |
| Lub tshuab cua sov qis | 1200W |
| Hauv qab IR | 2400W |
| PCB txoj haujlwm | V-groove, PCB-platform nrog fixtures yog txav tau ntawm X-axis |
| Kev tswj qhov kub thiab txias | PID thiab PPM calculating, thermocouple cloosed-loop |
| Mounting raug | 0.01 hli |
| Min chip qhov chaw | 0.1 hli |
| Kub qhov tseeb | +/- 1 degree |
| Saib xyuas qhov screen | 15 ntiv |
| Kov npo | 7 ntiv |
| Lub cev muaj zog | PLC tswj |
| PCB loj | Min 10 * 10mm, Max 450 * 400mm |
| Chip loj | 1 * 1 ~ 80 * 80mm |
| Dimension | 600 * 700 * 850 hli |
| Net nyhav | 70kg tsis siv neeg bga rework chaw nres tsheb |

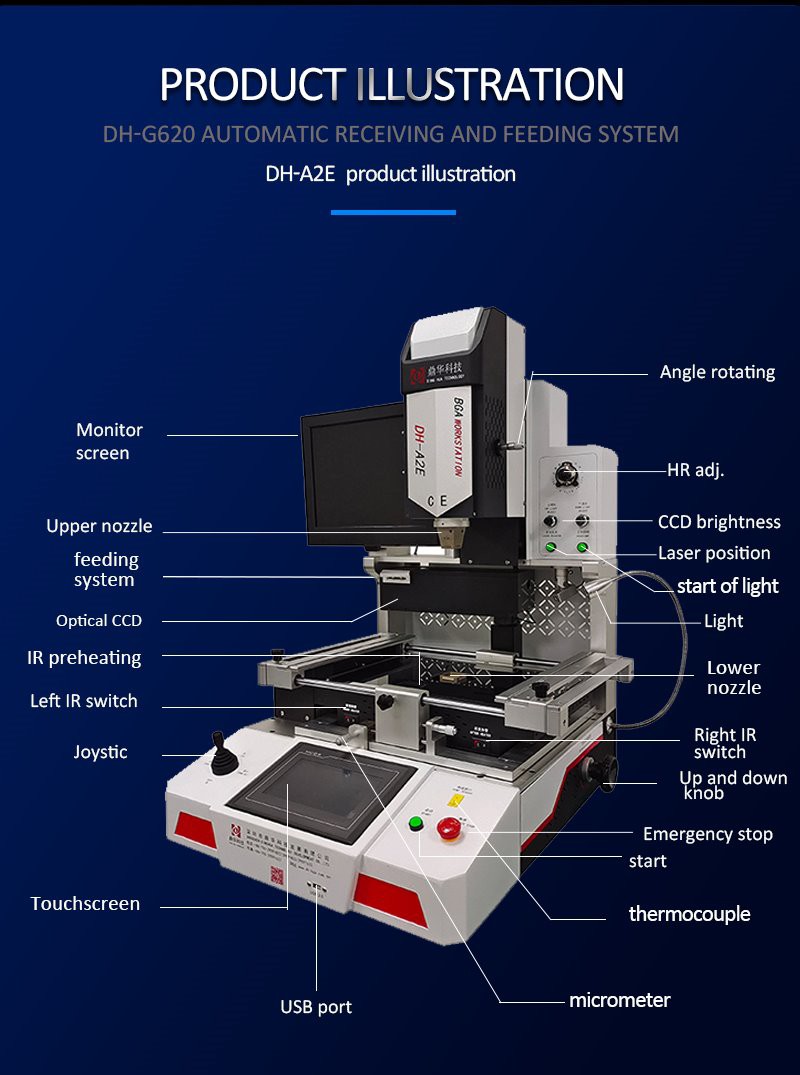

Cov npe ntawm cov khoom siv:
| Saib xyuas qhov screen | Chip thiab motherboard duab ntawm antminer l3 hashboard kho |
| Upper nozzle | Los sau cov cua kub rau cua sov |
| Pub noj system | Tsis siv neeg nqa lossis rov ua dua ib nti t9+ hash board kho |
| Optical CCD | Visbile aligning thiab mounting |
| IR preheating | Preheating cheeb tsam |
| Sab laug IR hloov | Qhib/tawm antminer l3+ hash board hloov |
| Zoo siab | Zoon hauv / tawm smd tshuab tsis siv neeg |
| Touchscreen | Txhawm rau teeb tsa qhov kub thiab sijhawm kho antminer hash board |
| USB chaw nres nkoj | Upload software los yog download tau kub profile |
| Micrometers | Fine-tune +/-15mm l3 hash board kho |
| Thermocouple | Kev ntsuas kub sab nraud |
| Pib | Pib ua hauj lwm kho hashboard |
| Thaum muaj xwm ceev nres | Tsis txhob khiav antminer s9 hash board hloov |
| Up thiab down pob khawm | Nce thiab nqis |
| Txoj cai IR hloov | Qhib / tawm ceev smd tshuab |
| qis nozzle | Los sau cov cua kub rau cua sov |
| Teeb | Teeb pom kev zoo s9 hash board kho |
| Pib ntawm lub teeb | Qhib / tawm |
| Laser txoj hauj lwm | Txhawm rau nrhiav kom tau sai antminer hash board kho |
| CCD brightness | Kho qhov ci ntsa iab |
| HR adj. | Kub-cua ntws hloov kho |
| Lub kaum sab xis tig | Chip tig |
Khoom piav qhia:
Cross flow fan--uas tuaj yeem pib ua haujlwm thaum cua sov dhau, ua rau PCB thiab nti tiv thaiv feem ntau.

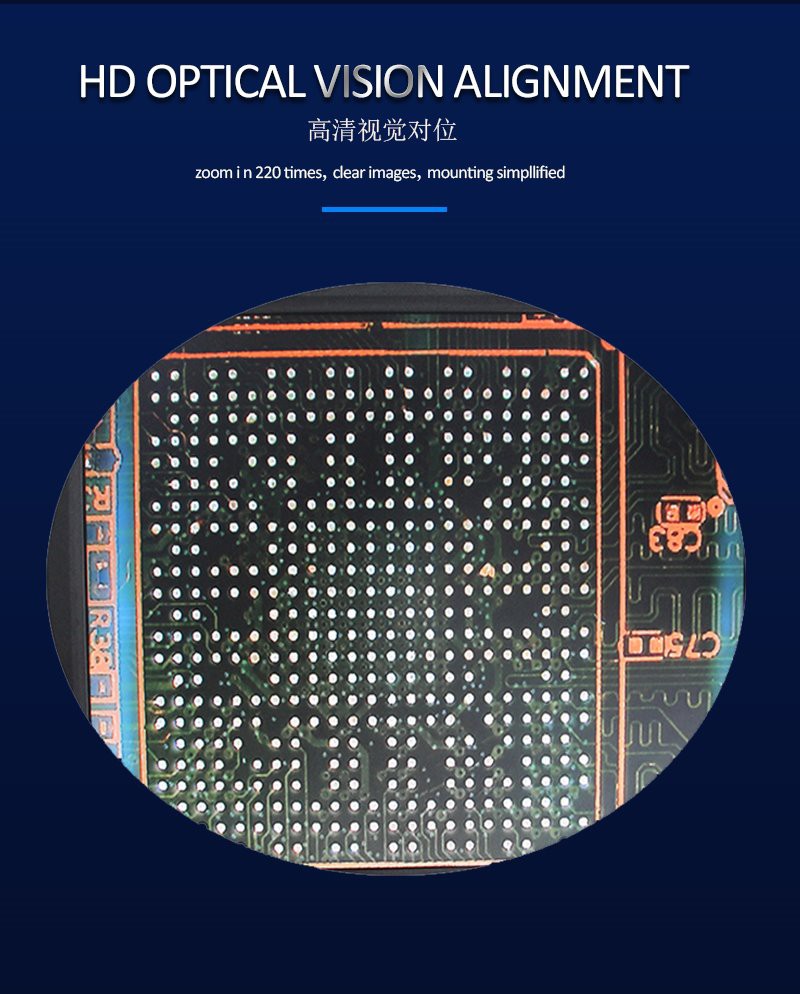

Saib xyuas lub vijtsam --15 nti, HD 1080P, tag nrho cov dots ntawm nti thiab motherboard tuaj yeem pom meej ntawm qhov screen, FHD txhawb nqa.
Laser txoj hauj lwm-- kom ceev ceev tso motherboard lossis nti ntawm nws txoj haujlwm.
Universal fixtures-- tam sim no teeb meem yuav ua li cas lub PCBa tsis tu ncua los yog tsis, uas tuaj yeem kho ntawm lub platform ua haujlwm kom sov.

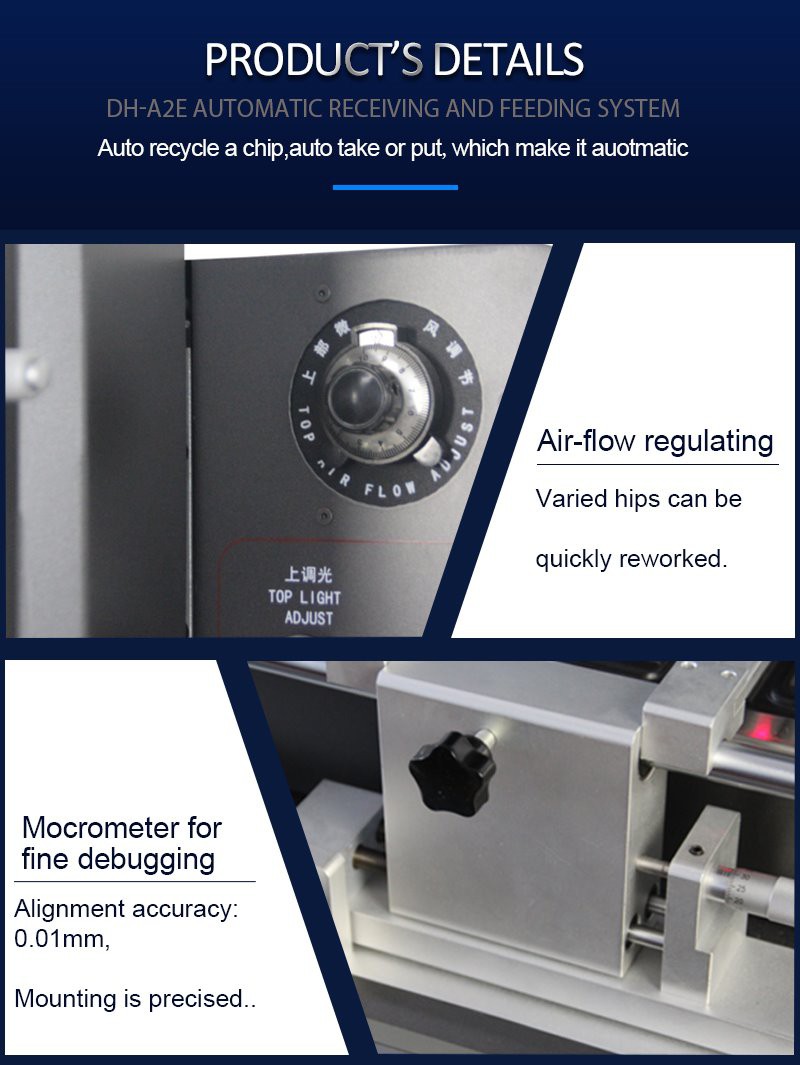

Cua-flow regulating-- hloov kho rau cov nti sib txawv, cov nti me me yuav tsis raug tshuab.
Micrometers-- Thaum aligning, motherboard tuaj yeem xa mus / rov qab los yog sab laug / sab xis +/- 15 hli.
Chips-- suav nrog cov no raws li saum toj no tab sis tsis txwv rau lawv. QFN, SOT-232, PLCC, TQFP, BQFP, POP thiab PCBGA thiab lwm yam.
Profiles teeb-- kub, ceev (tus nqi nqes hav) thiab lub sij hawm raug teem raws li qhov yuav tsum tau, mus txog 50000 pawg tuaj yeem khaws cia
rau siv thaum xav tau.
Siab nquag temperatrues ntes kom pom kev sib txawv ua ntej, uas ua rau BGA tshuab ua haujlwm zoo thiab muaj kev ntseeg siab.
Video ntawm BGA rework chaw nres tsheb:
Kev pab cuam tom qab muag-- ib mus rau ib qho kev cob qhia online, kom muaj lus teb hauv 1 teev, thiab muaj 12 lub hlis lav.
