SMT reel x ray txee
Ceev ceev thiab raug txheeb xyuas cov ntaub ntawv xws li 7-17 nti tais/Jedec Tray/IC
thiab cov hnab ntim dej noo
Hauj lwm lawm
Khoom Description
Nws siv lub hauv paus ntsiab lus x ray thiab kev sib koom tes nrog tus kheej tsim software algorithm nrog AI ua haujlwm kom sai thiab raug suav cov naj npawb ntawm cov khoom hauv cov khoom siv, uas tseem muaj peev xwm tuaj yeem tshawb xyuas cov lej thiab xa cov ntaub ntawv.
rau MES, ERP thiab lwm qhov system.

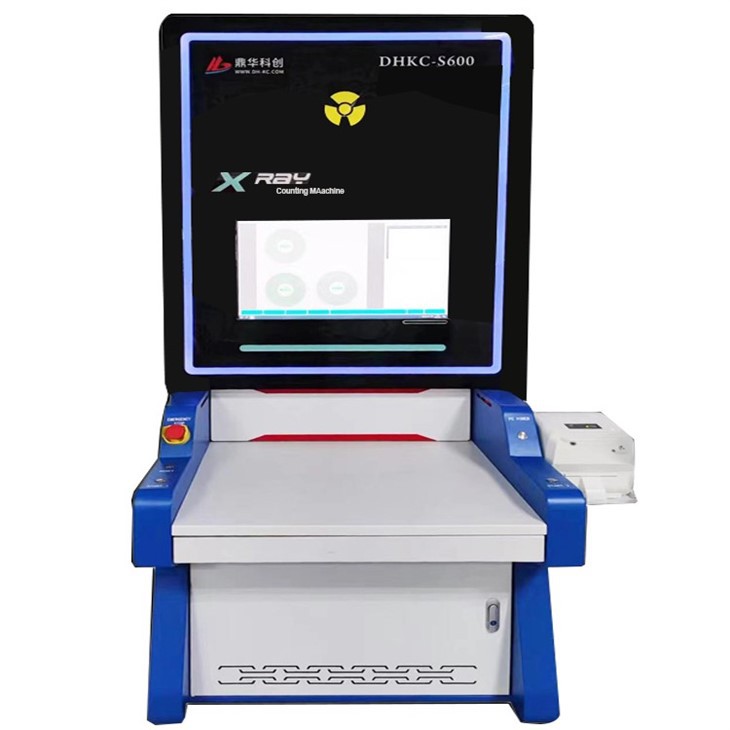

X-ray suav tshuab. kuj hu ua x ray reel txee, tau txais 40KV ~ 90KV kaw x ray raj, uas ua tau raws li cov kev xav tau ntawm cov khoom siv sib txawv.
Daim ntawv thov khoom
x ray txee tshuab tuaj yeem txee 1 ~ 4 pcs 7- nti tais raws li hauv qab no, lossis 1 pcs 17 ntiv tes tais tso rau hauv.
Cov khoom parameter
| Fais fab mov | 100 ~ 250V 50/60Hz |
| Rated zog | 1000W |
| x ray source | Reflective kaw mini hom tsom |
| x ray nyiaj | 0~1100uA |
| Ua kom pom tseeb loj | 33~110μm |
| Pixel matrix | 3072*3072 |
| Duab loj | 430mm * 430 hli |
| Spatial daws teeb meem | 5 LPB/mm |
| A/D conversion | 16-ib |
| xray tiaj tus vaj huam sib luag ntes | Amorphous silicon |
| Khoos phis tawj pej thuam | kev txhim kho tus kheej los yog xaiv tau |
| Kev ua haujlwm system | Yeej 10 64-bit |
| Industrial computer configuration |
1 TB/8G |
| Saib xyuas qhov screen | 24-inch HD saib |
|
Ua haujlwm platform loj |
400mm * 400mm (yeem) |
| Lub tais hnyav | Max 10 kg |
| Max phaj | 17 ntiv |
| Min qhov siab | 4mm ib |
| Max qhov siab | 80 hli |
| suav raug | 99.99% |
| Min Cheebtsam | 01005 |
| Daim ntawv lo luam ntawv | Muaj pinter, luam ntawv cov lej thiab suav cov txiaj ntsig hauv lub sijhawm |
| Barcode scanning | Tsis siv neeg 1D thiab 2D barcode scanning |
| SMT reel x ray counter software | Txhawb nqa tsis siv neeg txuag ntawm SPC cov txheeb cais, cov duab thiab cov txiaj ntsig hauv txhua hom ntawv |
| Docking system | Txhawb cov kab ntau lawm ERP thiab MES systems |
| Tswb hom | Acousto-optic tswb |
| Dimension |
L820mm × W1300mm × H2210mm |
| Qhov hnyav | 8 00kg |
Cov ntawv thov cov khoom
SMT reel x ray txee tuaj yeem suav tsis kam, hluav taws xob muaj peev xwm, ic, bga, qfn thiab lwm yam
smd smt cov khoom.
Khoom kom zoo dua
1. yuam kev-pov thawj mechanism
Cov ntaub ntawv tais yog tag nrho inductively txheeb xyuas thiab txuas nrog lub tshuab luam ntawv hauv lub sijhawm.
Nqa ib lub tais ntawm cov ntaub ntawv thiab luam tawm cov ntaub ntawv ntawm lub tais tam sim ntawd.
2. Cov ntaub ntawv docking
Txuas nrog cov ntaub ntawv kaw lus xws li MES / ERP / WMS, cuam tshuam nrog cov ntaub ntawv hauv lub sijhawm, thiab upload
thiab hloov kho cov ntaub ntawv xaj kom raws sijhawm.
3. AI algorithm
Nws muaj nws tus kheej tsim Al ua haujlwm algorithm software uas tuaj yeem suav tau sai thiab raug
kom muaj nuj nqis ntawm cov ntaub ntawv nyob rau hauv lub discharging tais thiab txhim kho kev ua hauj lwm efficiency.
4.Siv scene
Nws yog haum rau ntau hom chip Cheebtsam, SMD li saum toj no 01005, thiab suav
qhov tseeb nce mus txog ntau dua 99.99%.
Demo video
Yuav siv li cas SMD reel counter x ray:
