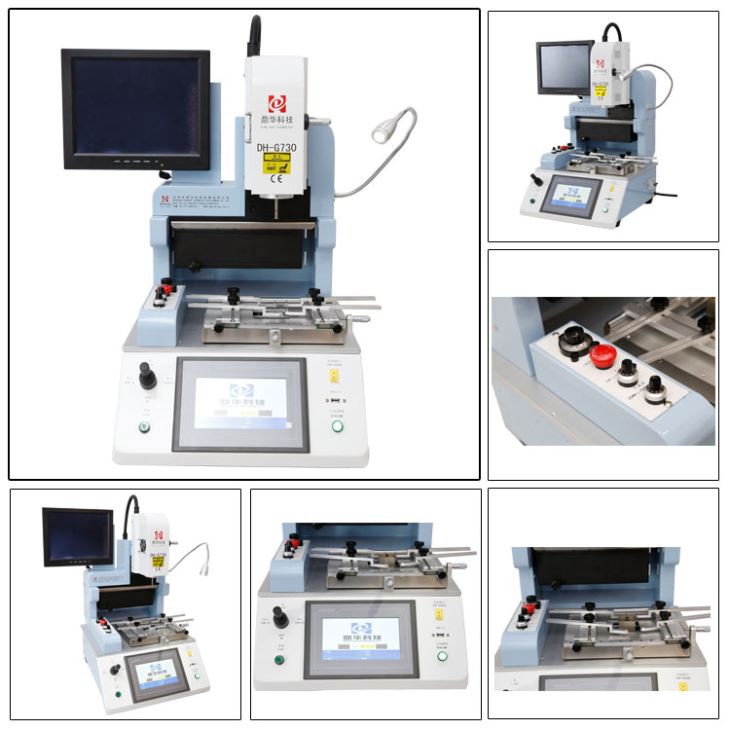

BGA Rework Chaw Nres Tsheb Rau Txawb Xov Tooj
US $5.{1}}$2999.00 / Daim
1 Daim Min. Kev txiav txim
Loj: 500 * 460 * 640mm
Luj: 35KG
Rated muaj peev xwm: 2500W
Tam sim no: 20A
Voltage: AC 110 ~ 240 V ± 10% 50 / 60Hz
Rated Duty Cycle: 100%
Hauj lwm lawm

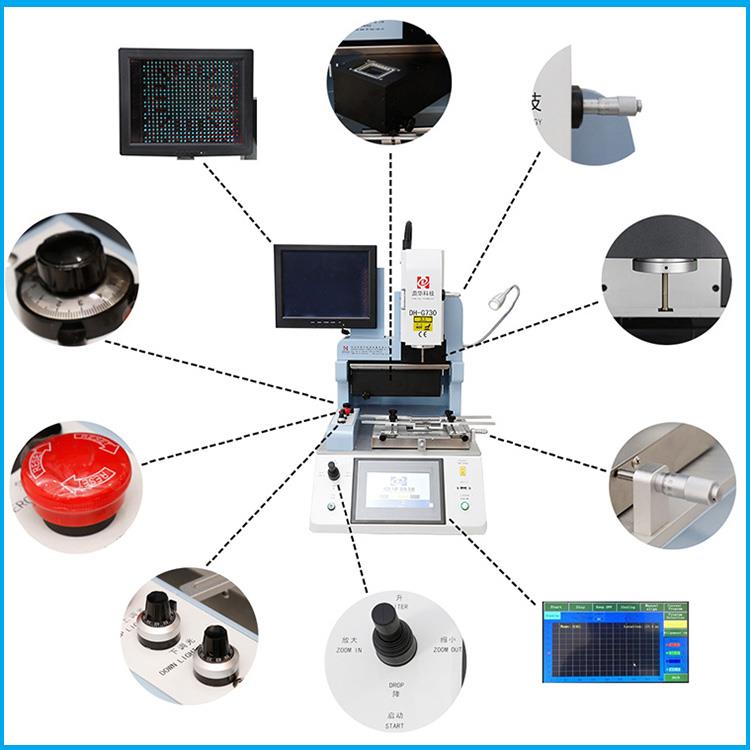

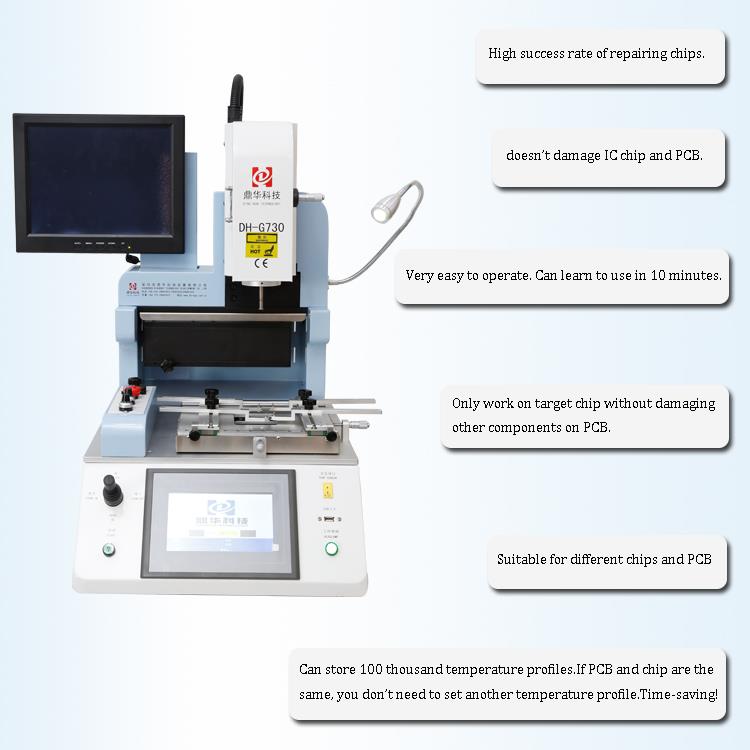

BGA Rework Chaw Nres Tsheb Rau Xov Tooj Txawb Nta:
1. Nws pib de-soldering & rov soldering, ua haujlwm yooj yim, nqa mus nqa.
2. Kev kho qhov ua tau zoo nce mus txog 99%, raws li kev ua haujlwm raug.
3. Kev tswj qhov kub thiab txias, nrog cov k-hom thermocouple kaw-voj tswj, PID nws pib kub them nyiaj system, sab nraud temp. sensor, uas ua rau qhov sib txawv ± 2 degree.
4. Ob hom kev ua haujlwm hauv qhov system: tsis siv neeg thiab phau ntawv, uas yog ib qho yooj yim rau kev hloov ntawm ob qho tib si rau kev ua haujlwm zoo tshaj plaws.
5. Nws pib hom muaj xws li: Nws pib pub system, pib BGA / IC xaiv thiab qhov chaw, laser txoj hauj lwm, nws pib d-soldering thiab rov soldering.
6. Hom kev tuav yog tsuas yog siv los kov HD npo rau qhov kub thiab txias nkhaus / profile teeb tsa lossis hloov kho, ua rau sab saum toj & hauv qab cua sov hloov qhov siab, thiab lub koob yees duab txav, thiab ntsuas kub sab nraud, yog tias tsim nyog.
7. HD kov npo kev sib tham sib tham, nrog PLC tswj cov kev pabcuam sib koom ua ke, uas ua rau kev ua haujlwm yooj yim thiab yooj yim.
8. Muaj peev xwm teeb tsa 8 ntu ntawm qhov kub thiab txias, nrog kev hloov pauv cua sov sab saum toj thiab qis cua sov (txog 16 ntu). Thiab tsis txwv tus naj npawb ntawm qhov kub thiab txias profiles khaws cia hauv qhov kev pab cuam.
9. Pub dawb los kho lossis rov teeb tsa qhov nkhaus thaum lub sijhawm ua haujlwm, ib zaug nws tsim nyog los hloov.
10. Cov kiv cua zoo tshaj plaws nrog lub ntim loj ntawm cua-ceev, khiav ncaj qha tom qab cua sov ua haujlwm (txog <45 degree) los txhawb kev ua kom txias txias, thiab tiv thaiv lub hnub nyoog ntawm lub rhaub.

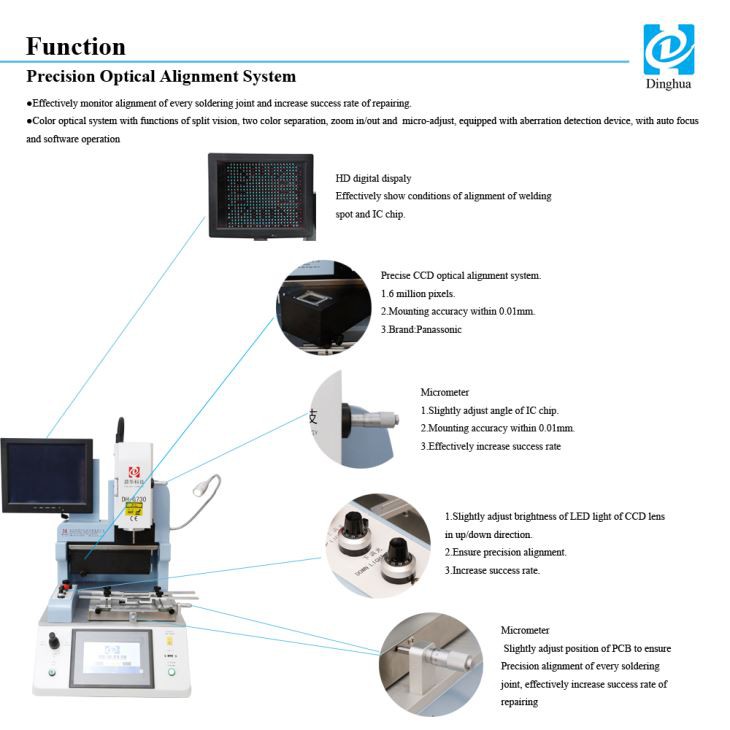

11. Panasonic branded optical alignment system nrog nws pib-folded CCD lub koob yees duab, hauv MAX 220x, uas ua rau lub zeem muag pom tseeb thiab txhim khu kev qha.
12. Tib neeg cov qauv tsim, nws pib folding optical lens, ywj siab xaiv teeb tsa ntawm qhov kub thiab txias nkhaus.

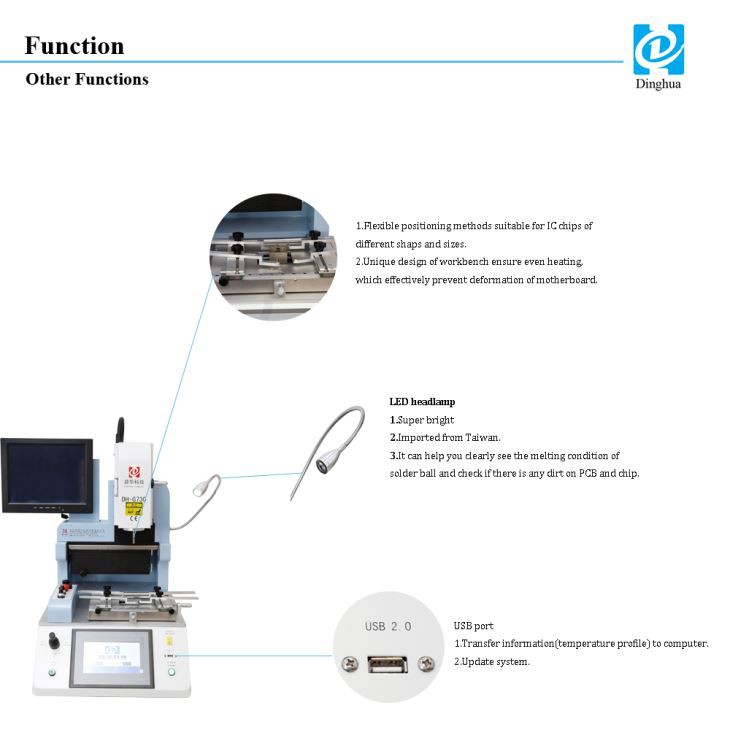

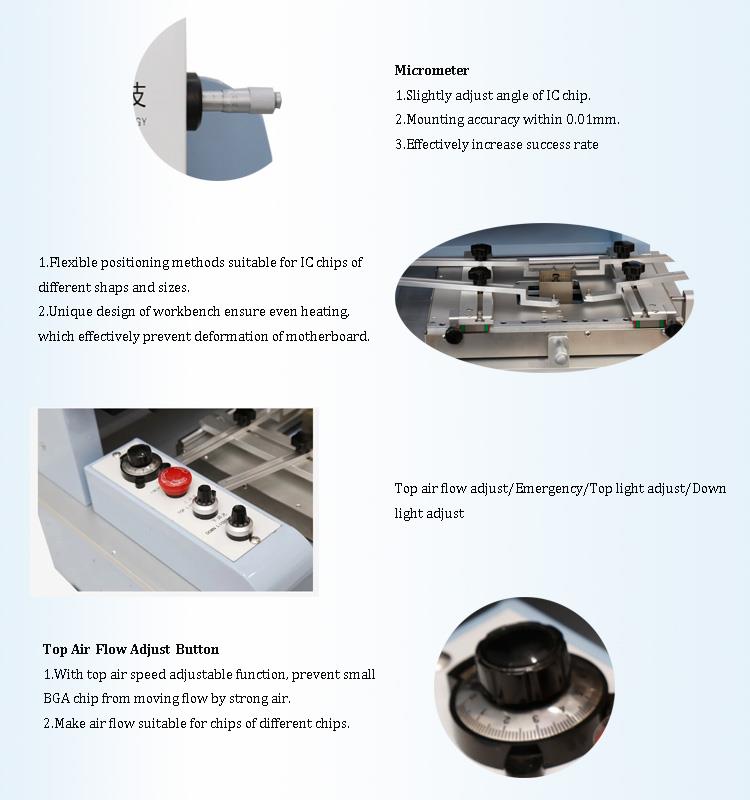

13. Precise tsim universal fixtures, ua rau lub PCB tuaj yeem hloov kho hauv X, Y, Z kev taw qhia nrog "5 ntsiab lus txhawb" + V-groove thiab PCB bracket, uas ua rau nws muaj kev ywj pheej rau qhov chaw PCB sai.
14. Laser point positioning ua rau txoj hauj lwm ntawm nti / IC yooj yim, raug thiab ceev.
15. Tsis tas li ntawd, cov khoom hloov pauv hloov tau yooj yim pab tiv thaiv lwm qhov ntawm PCB raug deformed, thiab nthuav dav siv ntau qhov ntau thiab tsawg PCB.
16. Lub zog loj LED teeb pom kev ua haujlwm pom ntau dua.

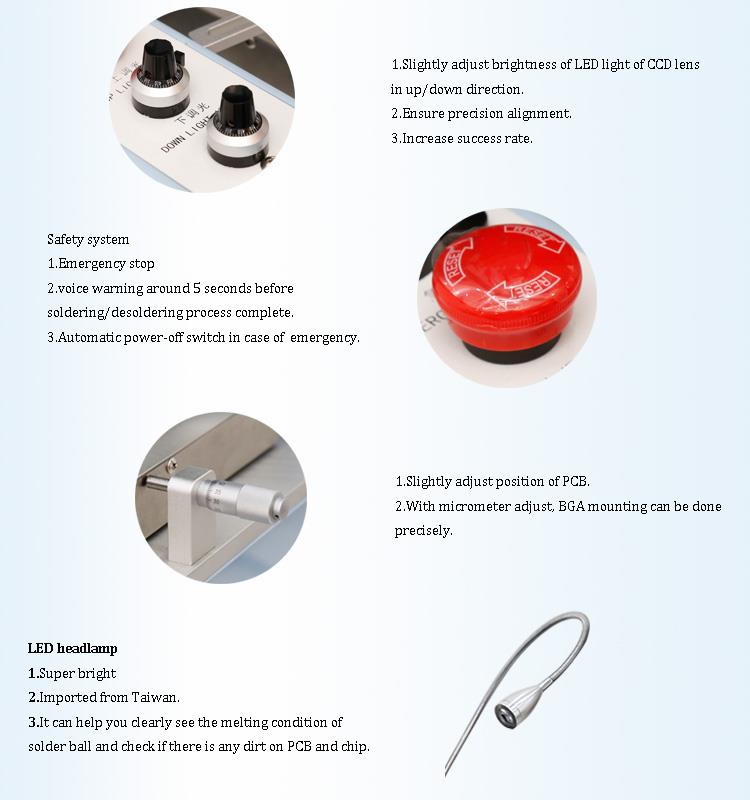

17. Nws pib kev nyab xeeb thiab ceeb toom system: pib lub suab ceeb toom ntawm 5 vib nas this ua ntej cua sov tiav.
18. Muab ob npaug rau kev tiv thaiv: Overheating guard + thaum muaj xwm ceev nres muaj nuj nqi.
CE daim ntawv pov thawj pom zoo.
|
Tag Nrho Lub Zog |
2500W |
|
Lub tshuab cua sov sab saum toj |
1200W |
|
Hauv qab rhaub |
1200W |
|
Qhov hluav taws xob |
AC110/220V ± 10% 50/60Hz |
|
Hom kev ua haujlwm |
Ob hom: phau ntawv thiab tsis siv neeg. HD kov npo, ntse txiv neej-tshuab, kev teeb tsa digital. |
|
OpticalCCD lub koob yees duab lens |
90 degree qhib / folding |
|
Optical CCD |
6 lab pixel |
|
Saib xyuas qhov screen |
1080P |
|
Lub koob yees duab magnification |
1x - 220x |
|
Workbench fine-tuning |
± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug, |
|
Upper micrometer rau lub kaum sab xis kho |
60 degree |
|
Qhov tseeb qhov chaw |
± 0.01 hli |
|
PCB txoj haujlwm |
Qhov chaw ntse, PCB tuaj yeem hloov kho hauv X, Y kev taw qhia nrog "5 ntsiab lus txhawb nqa" + V-groove PCB bracket + universal fixtures. |
|
Teeb pom kev zoo |
Taiwan coj lub teeb ua haujlwm, txhua lub kaum sab xis adjustable |
|
Kev tswj qhov kub thiab txias |
K sensor, kaw voj, PLC tswj |
|
Temp raug |
± 2 degree |
|
PCB loj |
Txhua yam ntawm lub xov tooj ntawm tes motherboard |
|
BGA chip loj |
1 x 1 - 80 x 80 mm |
|
Yam tsawg kawg ntawm nti sib nrug |
0.15 hli |
|
Sab nraud temper sensor |
1pc, lossis ntau dua ntawm koj qhov kev xaiv |
|
Kub profile cia |
50, 000 pab pawg (cov pab pawg tsis txwv) |
|
Qhov ntev |
L500 × W460 × H640 hli |
|
Qhov hnyav |
35 KG |
