Tsis Siv Neeg Optical Bga Rework Chaw Nres Tsheb

Tsis siv neeg optical BGA rework chaw nres tsheb

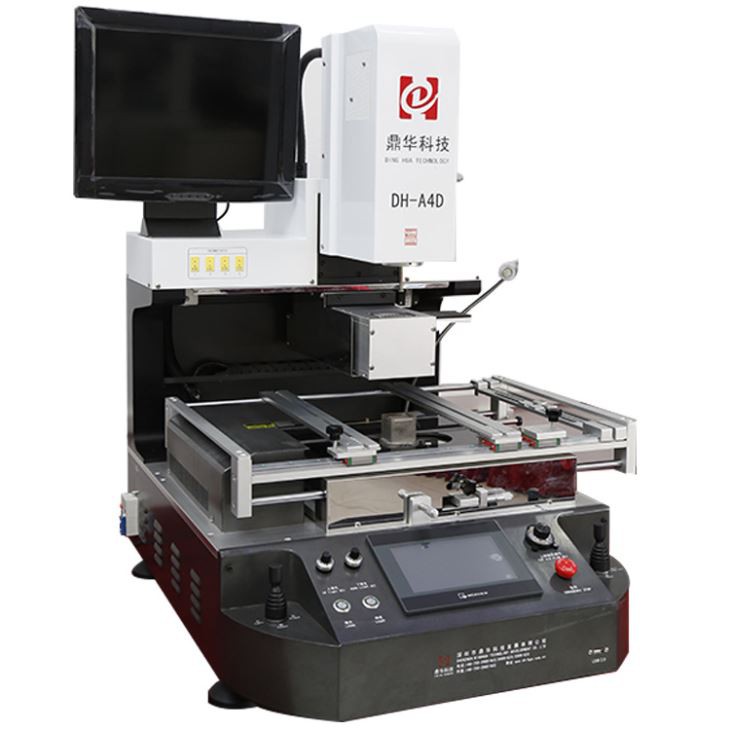

DH-A4D yog qhov zoo tshaj plaws BGA rework chaw nres tsheb featuring nrog txav tau IR preheating cheeb tsam, tag nrho tsis siv neeg optical CCD thiab nti

feeder, thiab laser point built-in lub taub hau kub saum toj kawg nkaus, thiab lwm yam uas tuaj yeem pab koj ua cov txheej txheem rov ua haujlwm yooj yim dua thiab ua haujlwm zoo dua.

Cov khoom parameter ntawm qhov tsis siv neeg optical BGA rework chaw nres tsheb

Cov ntsiab lus ntawm tag nrho nws pib optical BGA reballing tshuab

Tag nrho tsis siv neeg optical CCD imported los ntawm Nyiv & nti feeder siv rau ib nti nrog 1 * 1 ~ 80 * 80 hli,

Thaum lub tshuab ua haujlwm, lub tshuab nqus tsev twj tso kua mis built-in sab saum toj lub taub hau tuaj yeem khaws cov nti los yog tso cov nti rau.

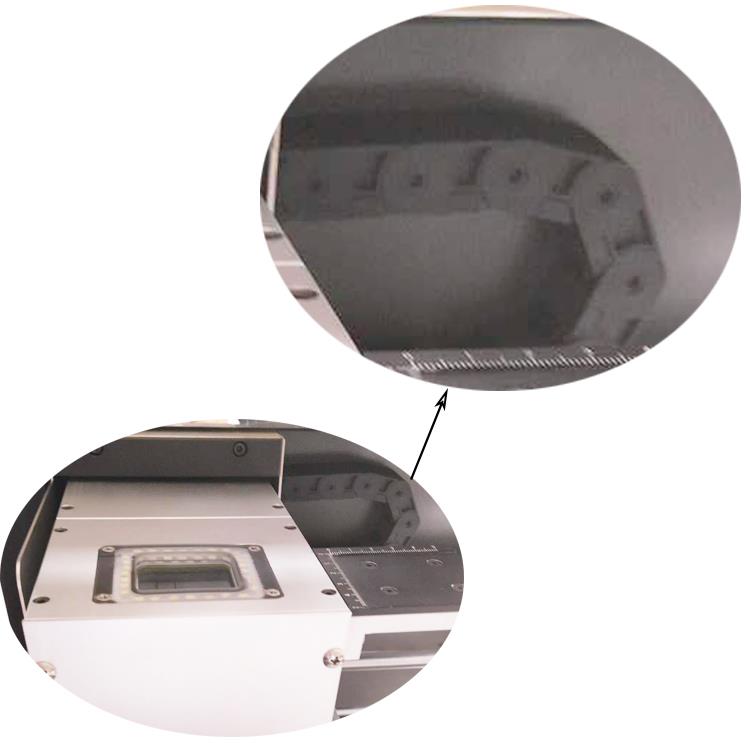

Lub "tank chain" rau cov cables no khiav nrog optical CCD & chip feeder, muaj kev nyab xeeb thiab ruaj khov.

Ob lub joysticks, thaum phau ntawv, ib qho yog rau optical CCD & chip feeder kom txav mus rau sab laug / sab xis lossis rov qab / pem hauv ntej,

ib qho yog rau lub taub hau sab saum toj kom khiav nce lossis nqis, thiab cov duab ntawm lub vijtsam saib zoomed hauv lossis tawm.

Infrared preheating cheeb tsam, rau cov duab sib txawv los yog nti nyob ntawm txoj hauj lwm sib txawv, thiab IR cheeb tsam muaj cov pa roj carbon

fiber ntau cua sov raj (teeb tsaus nti tau yooj yim nqus los ntawm PCB thiab ruaj khov) thiab tiv thaiv kub iav-cov ntaub thaiv npog npog

(tiv thaiv tej yam me me los yog plua plav tawm hauv qab).

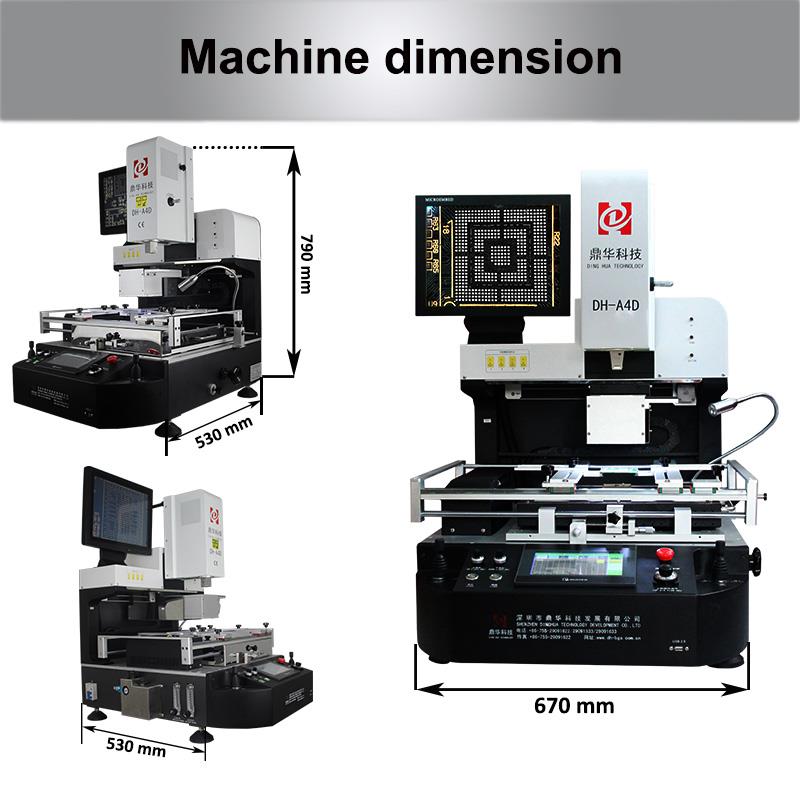

BGA rework chaw nres tsheb DH-A4D, L * W * H=670 * 530 * 790mm, net hnyav: 95kg, ntim rau hauv lub thawv plywood nrog ua npuas ncauj rau hauv

tshuab tiv thaiv. Qhov tsim nyog thiab qhov hnyav yog qhov yooj yim rau lub rooj zaum ua haujlwm feem ntau, tsis muaj teeb meem hauv khw kho

los yog rhiav.

Kev xa khoom, ntim khoom, thiab muag khoom-tom qab ntawm qhov chaw nres tsheb optical BGA rework

Cov tshuab zoo li no ib qho DH-A4D yuav vibrated rau tsawg kawg 24 teev ua ntej xa khoom, tsis hais yav dhau los lossis tam sim no,

peb yog tib tug uas ua kev vibration rau BGA rework chaw nres tsheb, tom qab ntawd, cia nws khiav tas li tsawg kawg 24 teev.

Kom paub tseeb tias cov cav tov yuav ua haujlwm zoo.

Ntim hauv lub thawv plywood (fumigated), txawm tias nws yuav xa mus rau qhov twg, tsis muaj kev txwv rau

Kev ntshuam. Cov ntoo tuab tuab thiab cov npuas dej sab hauv tuaj yeem ua rau lub tshuab muaj kev tiv thaiv zoo, thiab cov qauv qhia uas qhia txog kev ceeb toom tsis muaj upside down, upward thiab fragileness thiab lwm yam. Rau lub tshuab tau txais kev tiv thaiv zoo ntawm txoj kev xa khoom.

Cov neeg siv khoom muaj txiaj ntsig uas siv peb lub tshuab

Cov neeg muas zaub raws li saum toj no tau siv peb BGA rework chaw nres tsheb, tsis tsuas yog nyob rau hauv Tuam Tshoj, tab sis kuj txawv teb chaws, yog hais tias koj raug kaw rau lawv, tej zaum koj yuav sim mus cog lus rau lawv thiab mus saib, xav paub ntxiv, thov hu rau peb.

FAQ ntawm Tsis Siv Neeg BGA rework chaw nres tsheb

1. Q: Yuav ua li cas ua cov khoom nyob ib ncig ntawm lub nti uas yuav soldering los yog desoldering?

A: Cov nozzles customized yog tsim nyog, yog tias tsis muaj lub nozzles zoo, kuj, cov khoom siv thaum tshav kub kub, xws li,karpton daim kab xev.

2. Q:Yog thawj zaug ntawdkuv simrework ib board, Kuv yuav ua li cas?

A: Peb xav kom koj sim rov ua dua lub rooj tsav xwm seem thaum xub thawj.

3. Q: Kuv puas tuaj yeem siv nws los kho Iphone, Macbook thiab lwm yam PCBAs?

A: Tseeb, ntev npaum li PCB tsawg dua 410 * 450mm, ces lawv tuaj yeem rov ua haujlwm los ntawm lub tshuab no.

4. Q: Kuv puas tuaj yeem ntxiv lub koob yees duab ntawm sab rau saib lub pob solder melting?

A: Yog, yog tias xav tau, ib lub koob yees duab tuaj yeem ntsia tau rau qhov ntawd, cov duab yuav raug pom ntawm lub vijtsam saib.

Paub-yuav ua li cas txog Automatci optical BGA rework chaw nres tsheb:

1.Humanized tsim:

Embedded nrog Industrial PC ntxiv rau Stepper lub cev muaj zog tsav ntxiv rau kev txawj ntse kub module, ruaj khov thiab txhim khu kev qha.

Windows IOS interface ua lus Askiv thiab suav nrog USB interface, ua haujlwm yooj yim.

Txais ob qho chaw cua sov, ob qho tib si sab sauv thiab cov cua sov qis yog cua kub,

Suab hint system. 5s -10s ua ntej qhov kawg ntawm cua sov

2.Kev tswj qhov kub thiab txias:

Ob qho kev ywj pheej kub cua sov ntxiv rau PID tus kheej qhov chaw hloov kho ntxiv rau PLC, qhov tseeb qhov kub yuav nyob ntawm li 2 degrees.

Nws tuaj yeem teeb tsa 8 ntu cua sov, thiab khaws cia loj ntawm pab pawg kub profile.

Teem BGA cua sov nkhaus yooj yim thiab ntsuas kev tshawb nrhiav.

3.Txoj kev pom kev yooj yim:

Optical alignment ntxiv rau CCD xim lo ntsiab muag ntxiv rau Laser positioning

2 xim sib cais, magnification, micro hloov

Nws pib tsom, nws pib kho, nws pib xim txawv.

Lub teeb theem hloov qhov system.

Nyiv lub koob yees duab tuaj yeem txav pem hauv ntej thiab rov qab.

Built-in lub tshuab nqus tsev twj tso kua mis, khaws lub BGA nti txiav.

Joystick tswj, zoom hauv thiab zoom tawm, nqis thiab nce.

4.Precision Cheebtsam:

Precise fine-tuning ntawm BGA nti

X, Y, Z micrometers fine-tuning, qhov tseeb qhov chaw yuav yog li ntawm 0.01mm

V-groove clamp ntxiv rau universal fixture haum rau txhua yam ntawm PCB.

Cua sov system thiab mount lub taub hau 2 nyob rau hauv 1 tsim, meej qhov chaw.

5.Perfect kev ruaj ntseg tsim:

Nrog kiv cua tsis ua hauj lwm tiv thaiv, thermocouple tsis ua hauj lwm tiv thaiv muaj nuj nqi.

Kev tiv thaiv overheating, thaum muaj xwm ceev nres ua haujlwm.

Daim ntawv thov:

Haum rau txhua yam ntawm BGA (CCGA, BGA, QFN, CSP, LGA, Micro SMD, MLF, POP pob)

Lead thiab tsis muaj txhuas.
