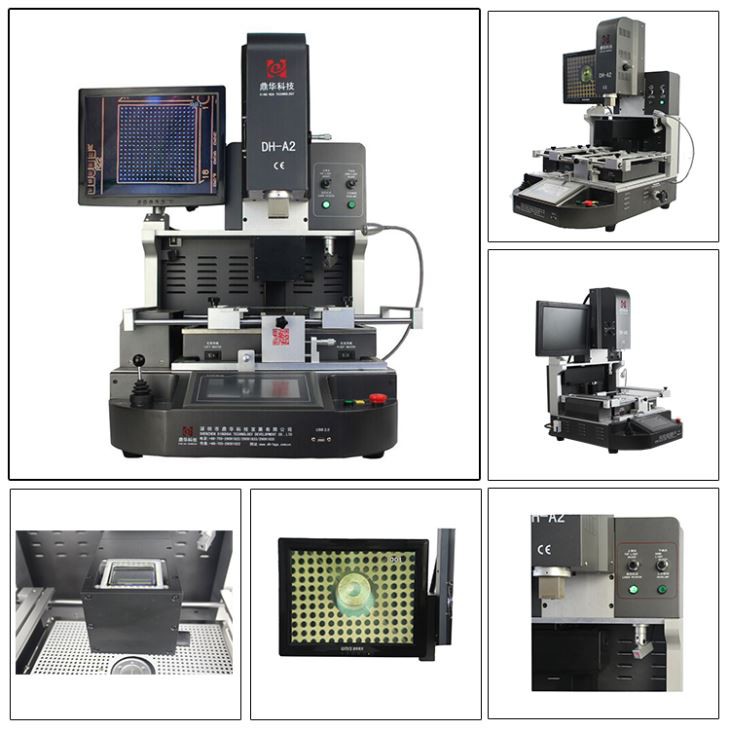

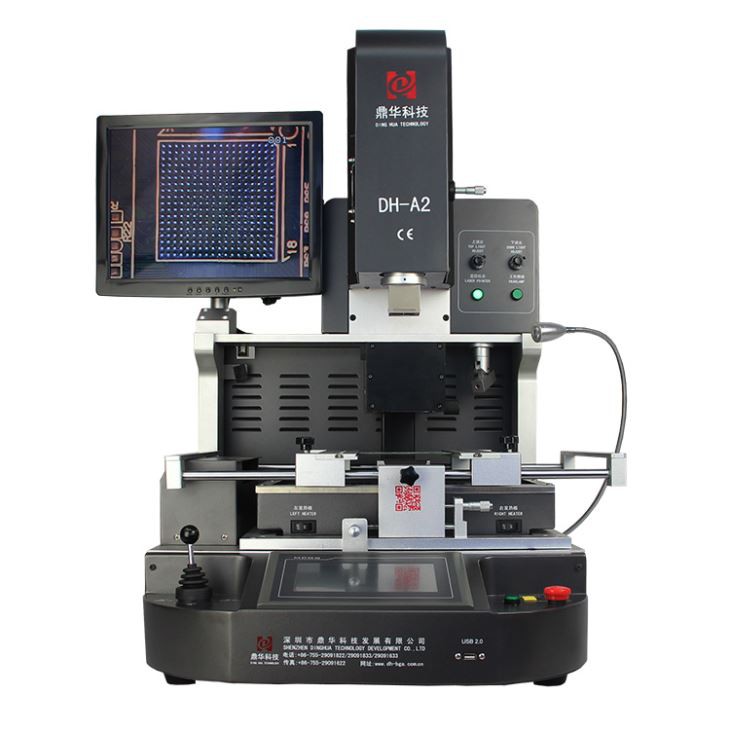

Optical North Choj BGA Rework Chaw nres tsheb

Optical North Choj BGA Rework Chaw nres tsheb



1.Application ntawm Optical North Choj BGA Rework Chaw nres tsheb

Haum rau PCB ntawm cov khoom siv hluav taws xob sib txawv.

Motherboard ntawm lub khoos phis tawj, xov tooj ntse (Iphone, Huawei, Samsung), laptop, MacBook logic board, digital koob yees duab, cua txias, TV thiab lwm yam khoom siv hluav taws xob los ntawm kev kho mob kev lag luam, kev sib txuas lus, kev lag luam tsheb, thiab lwm yam.

Haum rau ntau hom chips: BGA, PGA, POP, BQFP, QFN, SOT223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED nti.

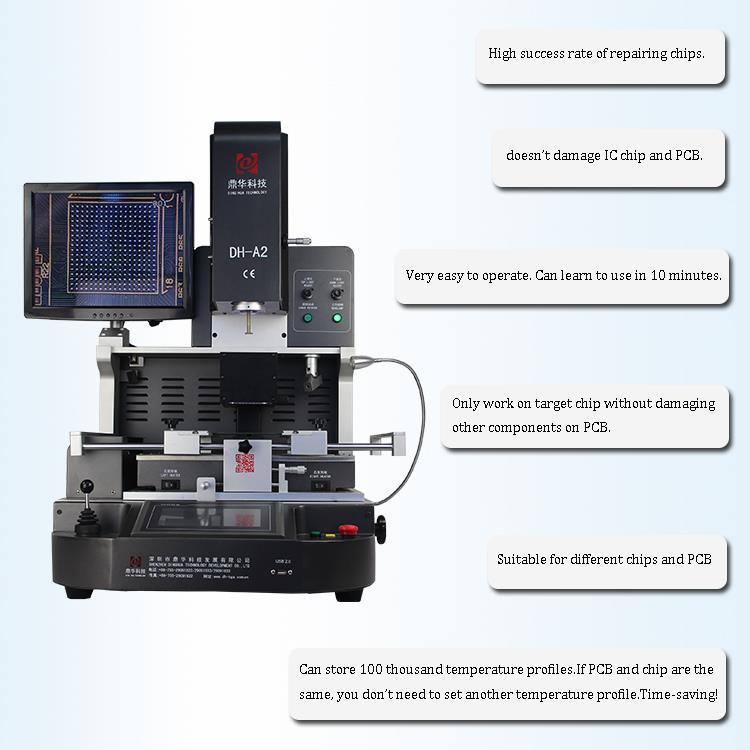

2.Product Nta ntawm Optical North Choj BGA Rework Chaw nres tsheb





• Nws pib desoldering, mounting thiab soldering.

• Kev ua tau zoo siab ntawm kev kho nti thiab PCB.

•Lub tshuab yuav tsis ua puas tsuaj rau cov khoom nyob ib puag ncig ntawm lub hom phiaj nti ntawm PCB vim kev tswj qhov kub thiab txias.

• Precise optical alignment system

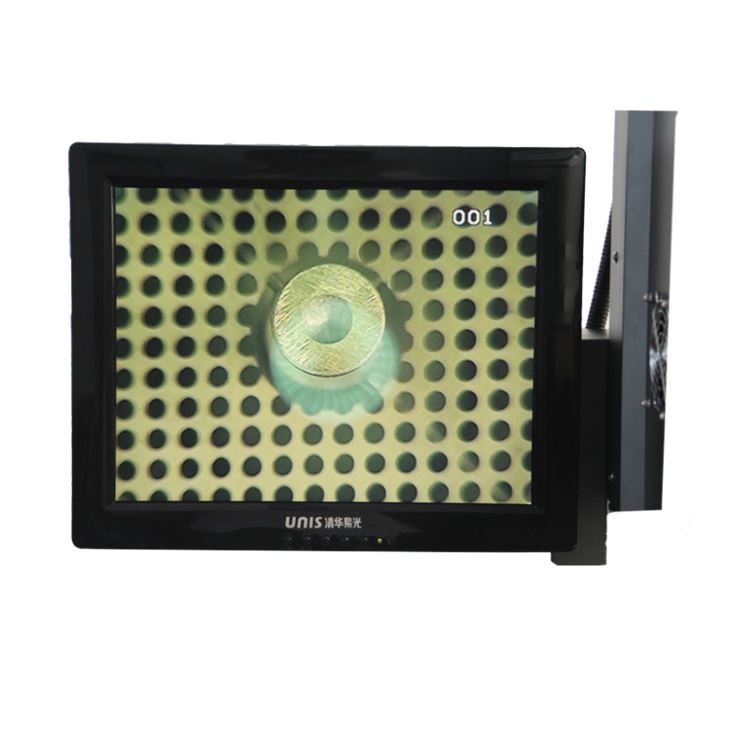

Panasonic CCD lub koob yees duab lens ua tau zoo ua kom qhov tseeb ntawm kev sib dhos thiab kev ua tiav ntawm kev kho. Duab dispayed ntawm lub monitor screen.

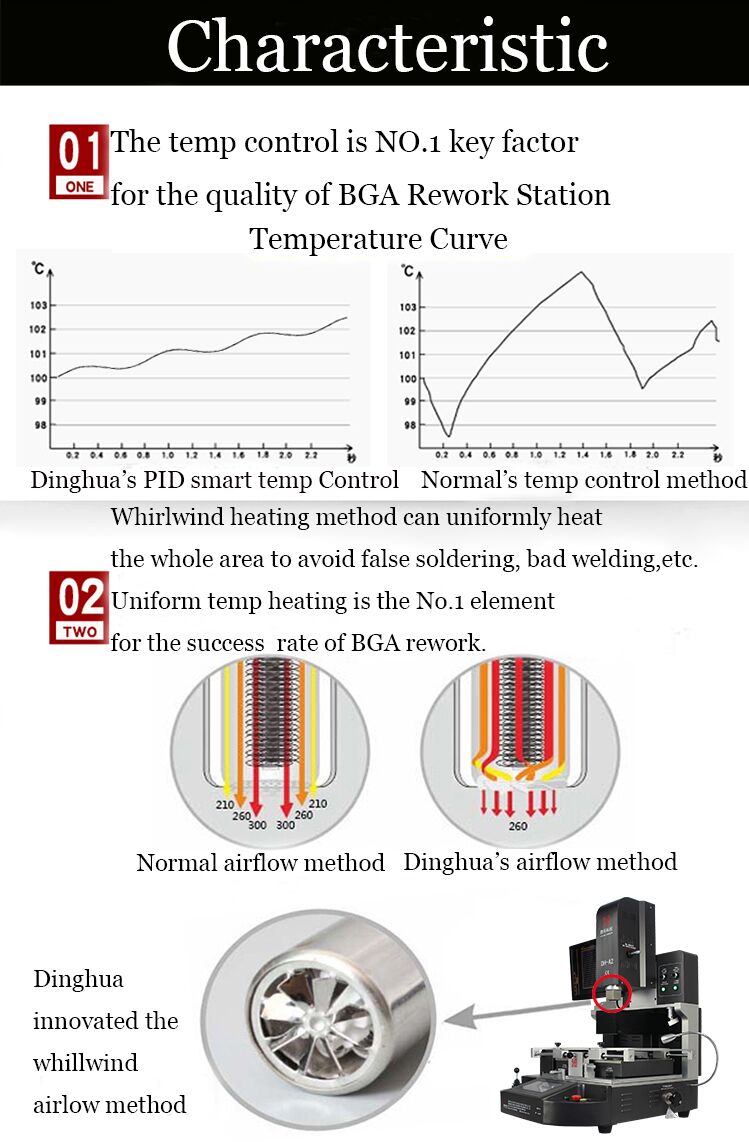

• Peb tus kheej tswj cov cua sov. Nws siv k-hom thermocouple kaw-voj tswj thiab PID tsis siv neeg qhov kub thiab txias qhov system, ua ke nrog PLC thiab ntsuas kub kom pab kom meej qhov kub sib txawv rau ± 2 degree centigrade.



3.Specification ntawm Optical Optical North Choj BGA Rework Chaw nres tsheb

Hwj chim	5300w
Lub tshuab cua sov sab saum toj	Cua kub 1200w
Hauv qab rhaub	Cua kub 1200W. Infrared 2700w
Fais fab mov	AC220V ± 10% 50/60Hz
Dimension	L530 * W670 * H790 hli
Qhov chaw	V-groove PCB kev txhawb nqa, thiab nrog rau sab nraud universal fixture
Kev tswj qhov kub thiab txias	Ktype thermocouple, kaw voj tswj, ywj siab cua sov
Kub qhov tseeb	± 2 degree
PCB loj	Max 450 * 490 mm, Min 22 * ​​22 mm
Workbench fine-tuning	± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug
BGA chip	80 * 80-1 * 1 hli
Yam tsawg kawg ntawm nti sib nrug	0.15 hli
Temp Sensor	1 (yeem)
Net nyhav	70kg ua

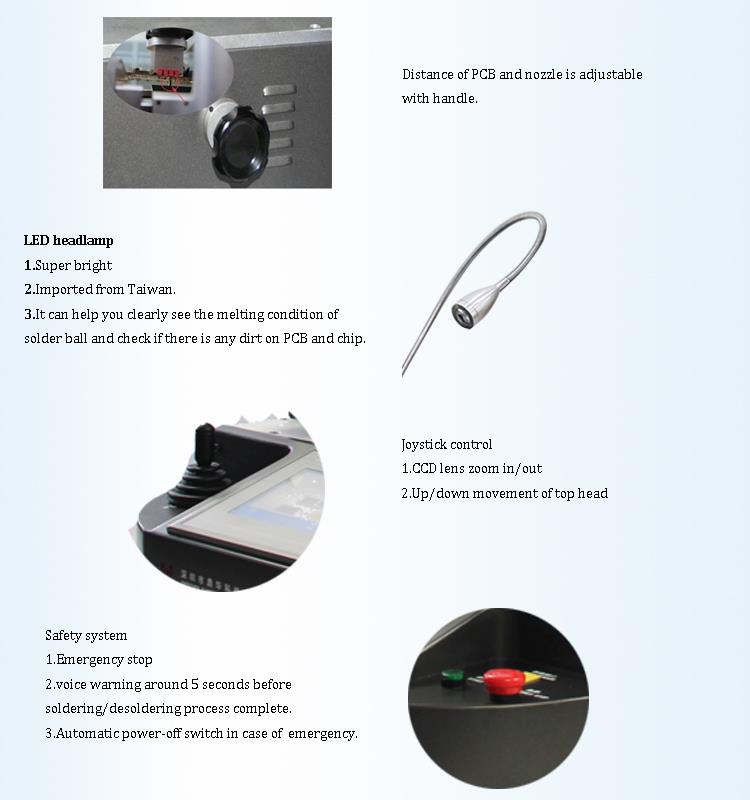

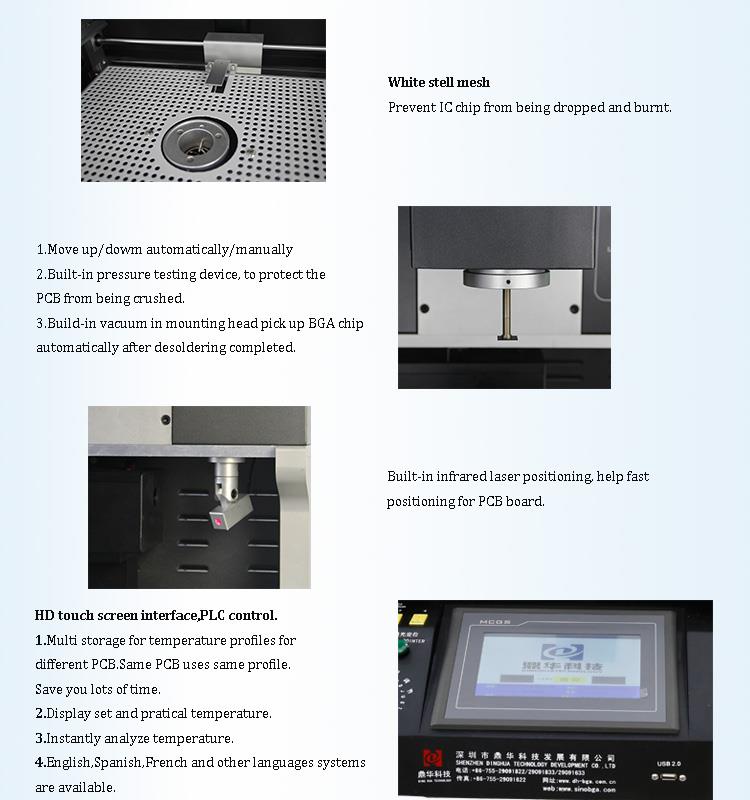

4.Kev nthuav dav ntawm Optical North Choj BGA Rework Chaw nres tsheb

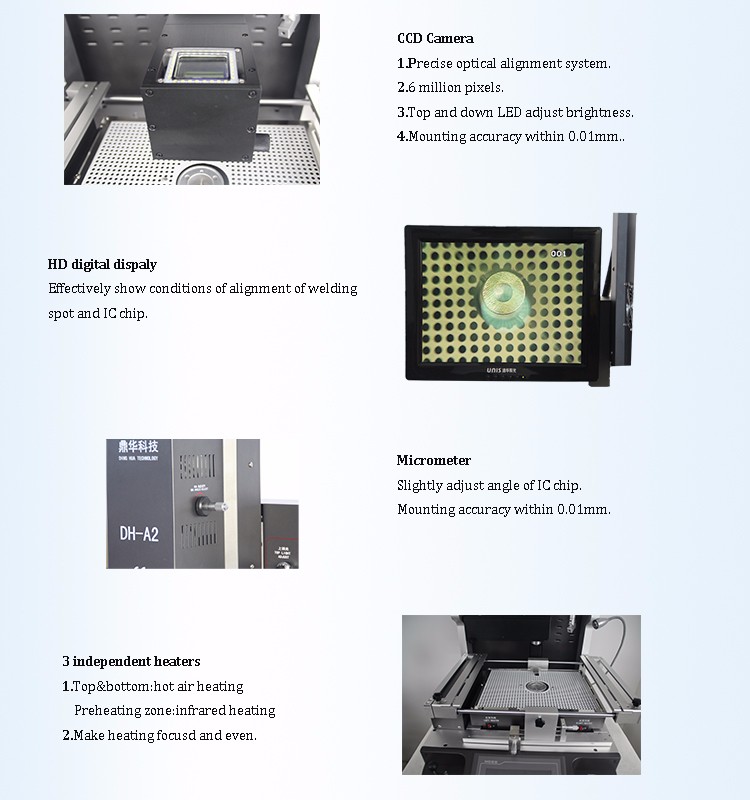

1.CCD lub koob yees duab (txoj kev kho qhov muag pom tseeb);

2.HD cov zaub;

3. Micrometer (kho lub kaum sab xis ntawm nti);

4.3 ywj siab tso cua sov ( cua kub & infrared );

5. Laser qhov chaw;

6. HD kov npo interface, PLC tswj;

7.Led taub hau;

8.Joystick tswj.

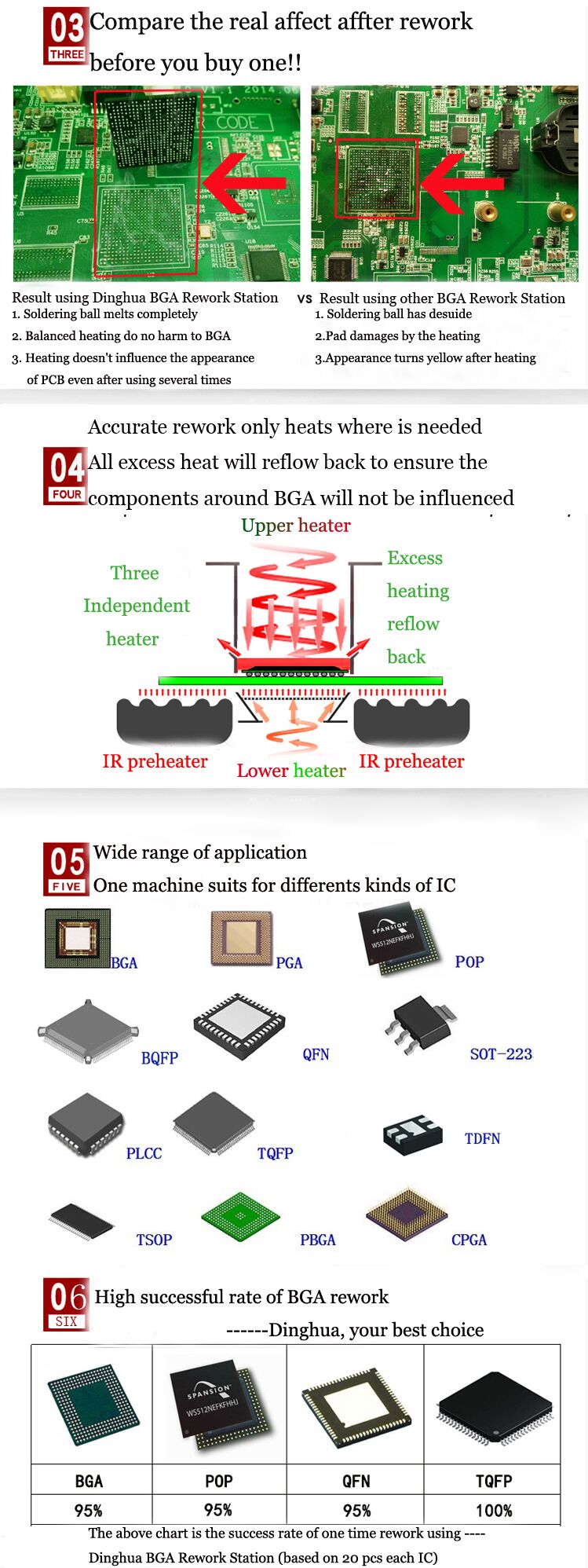

5.Vim li cas thiaj xaiv peb Optical North Choj BGA Rework Chaw nres tsheb?







6.Certificate of Optical North Choj BGA Rework Chaw nres tsheb

Txhawm rau muab cov khoom lag luam zoo, SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO., LTD yog thawj zaug dhau UL, E-MARK, CCC, FCC, CE ROHS daim ntawv pov thawj. Lub caij no, txhawm rau txhim kho thiab ua tiav cov txheej txheem zoo, Dinghua tau dhau ISO, GMP, FCCA, C-TPAT ntawm qhov chaw tshawb xyuas ntawv pov thawj.

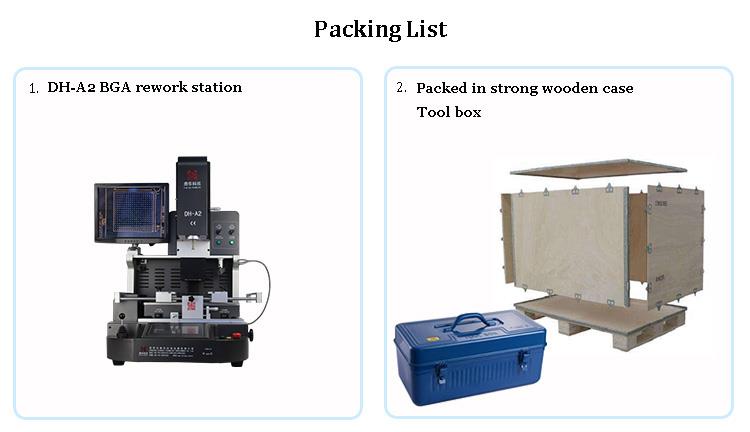

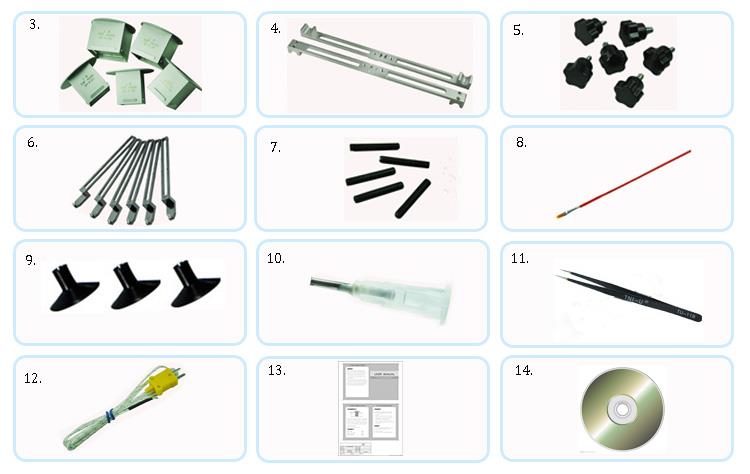

7.Packing & Shipping ntawm Optical North Choj BGA Rework Chaw nres tsheb



8. FAQ

• Dab tsi yog qhov haujlwm ntawm lub vijtsam kov hauv koj qhov chaw kho qhov muag sab qaum teb BGA rework chaw nres tsheb?

A: 1.Kov npo, ntse PC yog lub hlwb ntawm lub tshuab. PLC system, tib neeg-tshuab interface nrog Kov npo

rau kev ua haujlwm yooj yim thiab kev ua haujlwm siab raug.

2. Tswj qhov kub thiab txias profiles: qhov chaw, cia, daim ntawv thov, tsom xam, thiab debugging. Txog rau 16- ntu

Kev tswj qhov kub thiab txias, 100, 000 pawg cia rau qhov sib txawv BGA's rework kub profile.

3. Tswj lub tshuab.



•Lub luag haujlwm ntawm laser positioning yog dab tsi?

A: Ua-nyob rau hauv infrared laser positioning, pab ceev positioning rau PCB board.



• Puas yog cua kub cua sov lossis infrared?

Muaj peb lub tshuab hluav taws xob ywj pheej. Sab saum toj Kub Cua + Hauv qab Cua Kub + Infrared preheating platform. Sab saum toj thiab hauv qab

tuaj yeem txav tau nce / nqis. Qhov no tuaj yeem ua rau cua sov tsom thiab txawm. Txhim khu kev ua haujlwm zoo.
