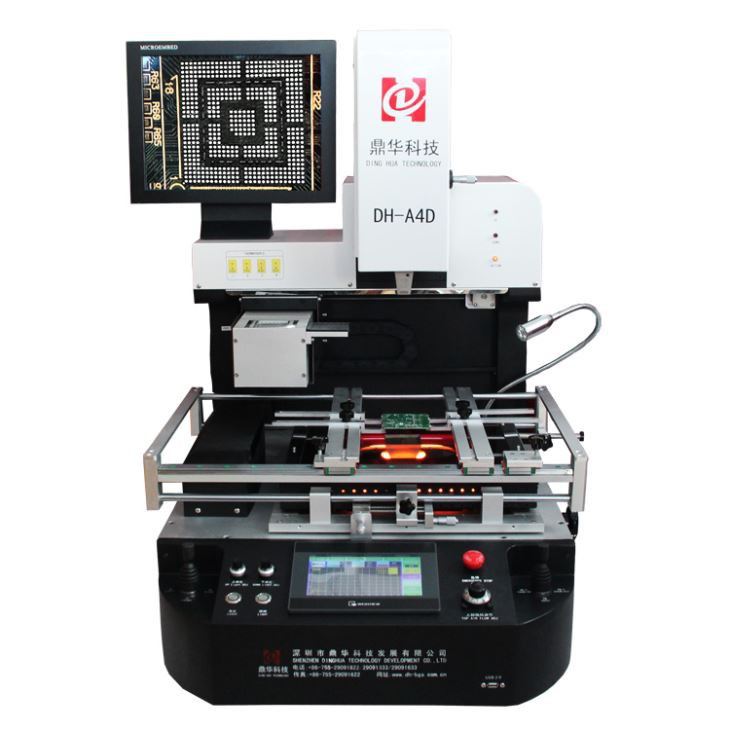

Lub chaw nres tsheb tom qab BGA Rework Station

Lub chaw nres tsheb tom qab BGA Rework Station

1.Application ntawm Optical VGA Card Chaw nres tsheb BGA Rework

Lub niam ntawv ntawm lub computer, smartphone, laptop, MacBook logic board, digital koob yees duab, cua txias, TV thiab lwm yam khoom siv hluav taws xob los ntawm kev kho mob kev lag luam, kev sib txuas lus kev lag luam, tsheb kev lag luam, thiab lwm yam.

Haum rau ntau hom chips: BGA, PGA, POP, BQFP, QFN, SOT223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED nti.

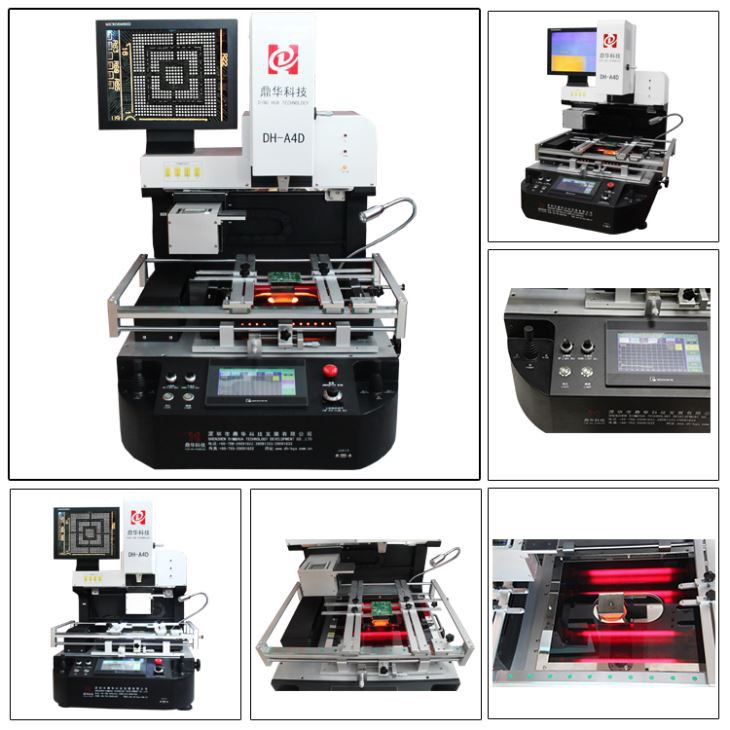

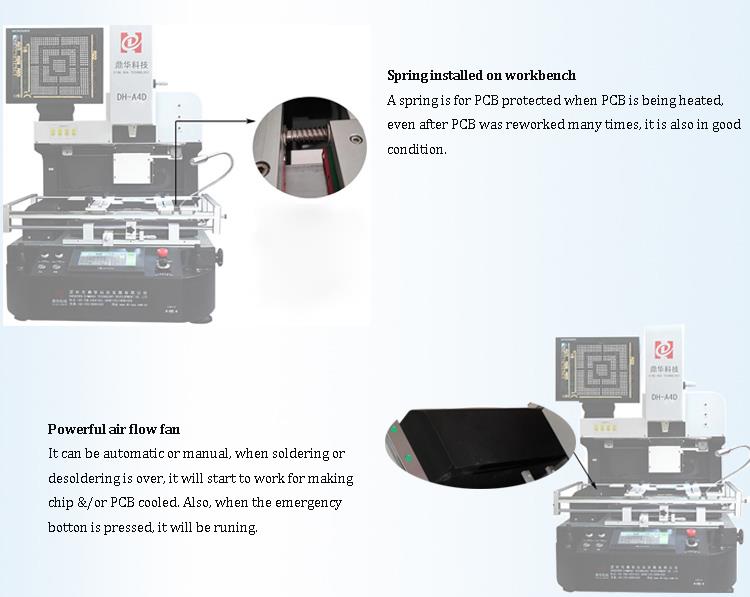

2.Qhov khoom nta ntawm Optical VGA Card Chaw nres tsheb BGA Rework

• Kev tawm, kev sib txuas thiab kev siv phom.

• Kev kho qhov ncaj kho qhov system

Nrog 15inches thiab 1980P, txawm tias tom qab me me cov phom sij me ntsis, yuav tsum muaj kev pom zoo, zoom hauv 10x ~ 220x.

• Lub tshuab hlwb hlau yog lub hlwb ntawm lub tshuab, uas yog rau PLC thiab PID tswj.

• Lub tshuab nqus tsev uas muaj qhov nqus ntawm lub taub hau tuaj yeem nce BGA nti tom qab kev tsim kho tiav.

• Irrigation qhov chaw ua kom sov, cov cua kub rau cov roj carbon fiber, lub teeb tsaus nti yooj yim heev los ntawm PCB, thiab IR cheeb tsam ua kom sov tau txav mus rau sab xis.

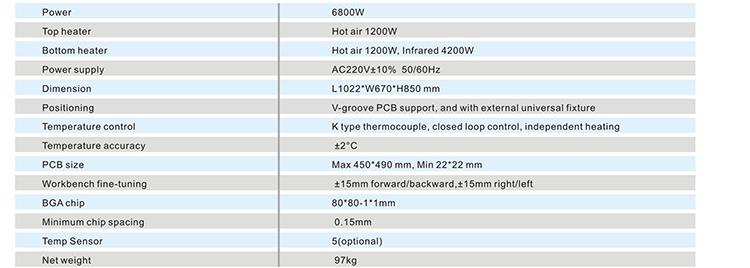

3. Kev Ntsuam Xyuas Ntawm Kev Xaiv Lub VGA Daim Npav Npav BGA

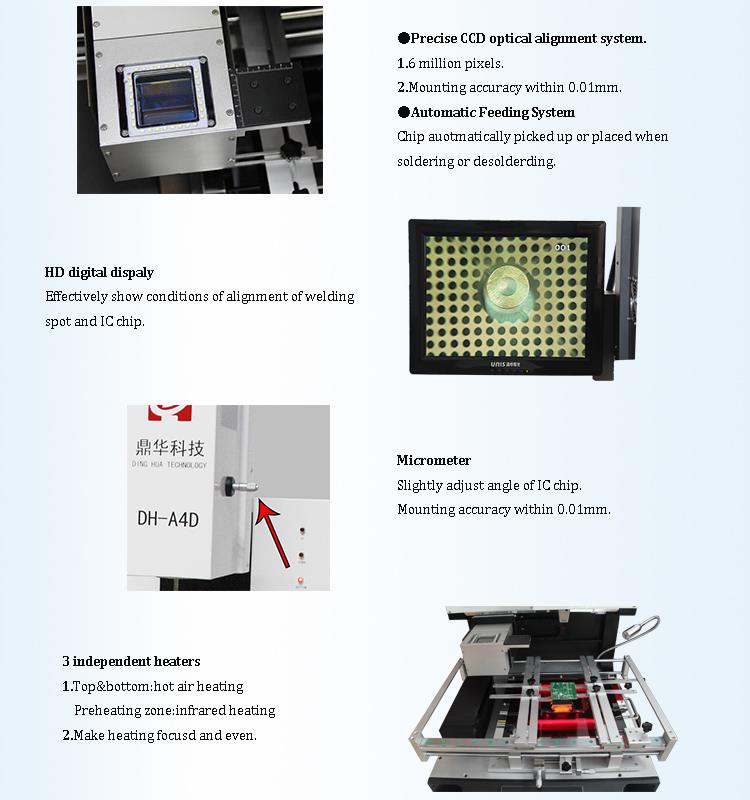

4.Cov khoom ntawm Optical VGA Card Chaw nres tsheb BGA Rework

1.A CCD lub koob yees duab (kho qhov muag kho qhov muag);

2.HD cov duab;

3. Micrometer (kho lub kaum sab xis ntawm lub chip);

4.3 ywj siab cov cua sov (cua sov thiab cua sov);

5. Laser teebmeem;

6. HD kov npo interface, PLC tswj;

7. Coj Lub taub hau.

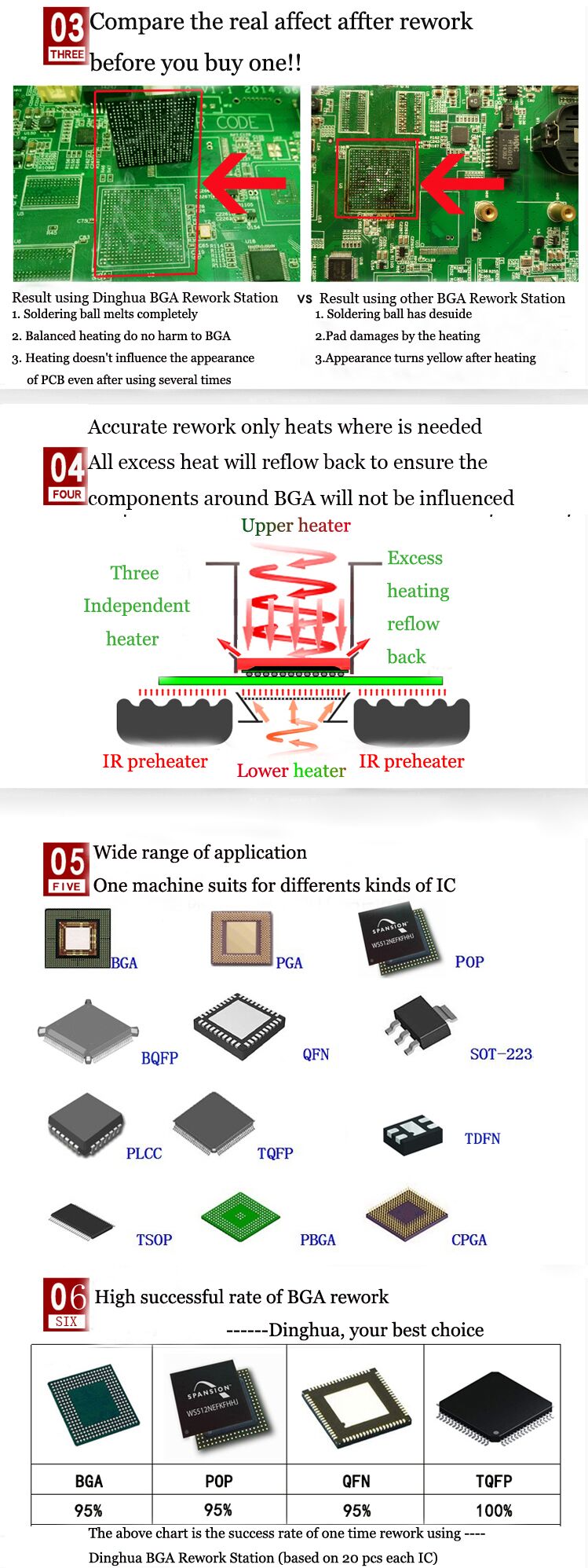

5. Vim Li Cas Peb Xaiv Peb Qhov Kev Xaiv VGA Daim Npav Rug Npaum BGA?

6. Tshem Tawm ntawm Optical VGA Card Chaw nres tsheb BGA Rework

7.Packing & Zaub mov xa ntawm Optical VGA Card Chaw nres tsheb BGA Rework

8.Cov FAQ ntawm Optical VGA Card Chaw nres tsheb BGA Rework

Li cas los ntsuas lub teeb liab hauv pob BGA?

Los ntsuas cov teeb liab hauv qab BGA, muaj ob qhov qauv: Scenario A: Kev ntsuas ntawm qhov kev yoojyim ntawm kev ua haujlwm tsawg-tsawg IO ntawm tus nti; Scenario B: Kev ntsuas ntawm cov teeb liab zoo ntawm high-speed IO. Scenario A scenario: Measure low-speed IO. Koj tuaj yeem tawm hauv qhov kev ntsuam xyuas nyob rau theem ntawm qhov theem thiab muab tso rau hauv ib qho chaw ntsuas zoo. Yog tias koj tsis muaj qhov ntsuas, koj tsuas tuaj yeem ya. Muaj ob qho ntawm no: Ua ntej, yog tus pin yuav tsum tau kuaj sim ze ntawm ntug ntawm lub nti, koj tuaj yeem ncaj qha ntawm lub ncoo. Flying line method: 1, xub siv lub nti tawm, saib qhov teeb meem ntawm lub npas, yog tias tsis muaj kev sib law lias thiab zoo dua qub, qhov no nti tuaj yeem muab rov qab rau hauv qhov chaw. Ntawm chav kawm, yog tias koj tsis tuaj yeem khaws, koj tsuas muab pov tseg thiab hloov nws. 2. Lub xaim hluav taws xob tau kub hnyiab tawm nrog lub taub me me, thiab cov kav hlau uas siv hauv cov pa PCB siv. Ncua kab txoj kab kom paub tseeb tias nws tsis nruj, nkawd, nws yuav thim tawm thaum cua tshuab phom. 3, nti rov qab rau hauv qhov chaw. Cua phom tshuab. Xa mus rau kuv cov lus teb "tes laug BGA tes". Thib ob, yog tias tus pin yuav tsum tau kuaj pom deb ntawm ntug, xws li kab thib peb, qhov kev vam meej yog qhov tsawg heev. Nws raug nquahu tias koj tshem cov ntivtes thiab ya tag nrho cov hlua mus rau hauv ncoo. Yam kev sim ntsuas twg. Scenario B lub tswv yim: Rau high-speed IO, xws li USB, MIPI, DDR, thiab lwm yam., Tawm hauv cov ntawv xeem thiab cov kab ya tsis txaus, thiaj li ntsuas cov teeb liab, thiab lub teeb liab zoo tsis tuaj yeem ntsuas. Tsis tas li ntawd, qhov kev ntsuam xyuas tau tshwm sim nws tus kheej muaj ib qho chaw khib nyiab thiab ua rau muaj kev cuam tshuam rau qhov kev txiav tawm impedance. Lub ntim tau tsuas yog muab tshem tawm thiab S-tsis yog ntsuas ncaj qha rau hauv ncoo hauv kev sim.
