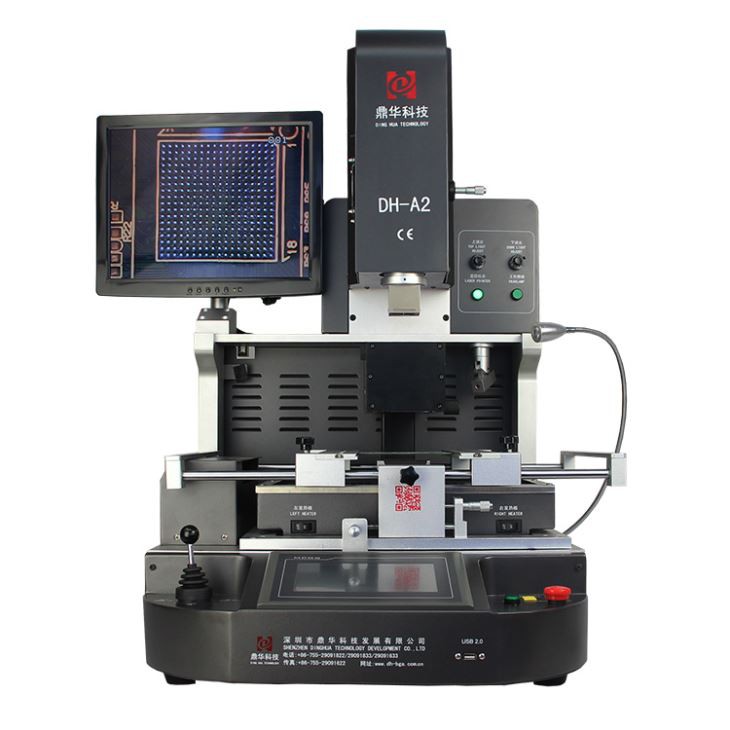

Kho qhov muag MacBook BGA Rhiav Chaw nres tsheb
1. Cia li cia li tuav, des neeg thiab Mount BGA IC nti nrog kho qhov muag txheej txheem thiab 3 thaj chaw cua sov.
2. Kev ua tiav zoo ntawm kev kho.
3. Haum rau PCB Loj: Max450 * 490, Min22 * 22mm.
4. Haum rau Chip Loj: 80 * 80-1 * 1 hli
Hauj lwm lawm
1. Daim ntawv thov
Haum rau cov pej xeem txawv.
Cov Motherboard ntawm Computers, smartphones, lub khoos phis tawj, tshuab luam ntawv digital logic, cov tshuab txiav tshuab, tshuab cua txias, thiab othe
Cov cuab yeej siv hluav taws xob hauv kev kho mob, kev sib txuas lus, kev lag luam tsheb, thiab lwm yam.

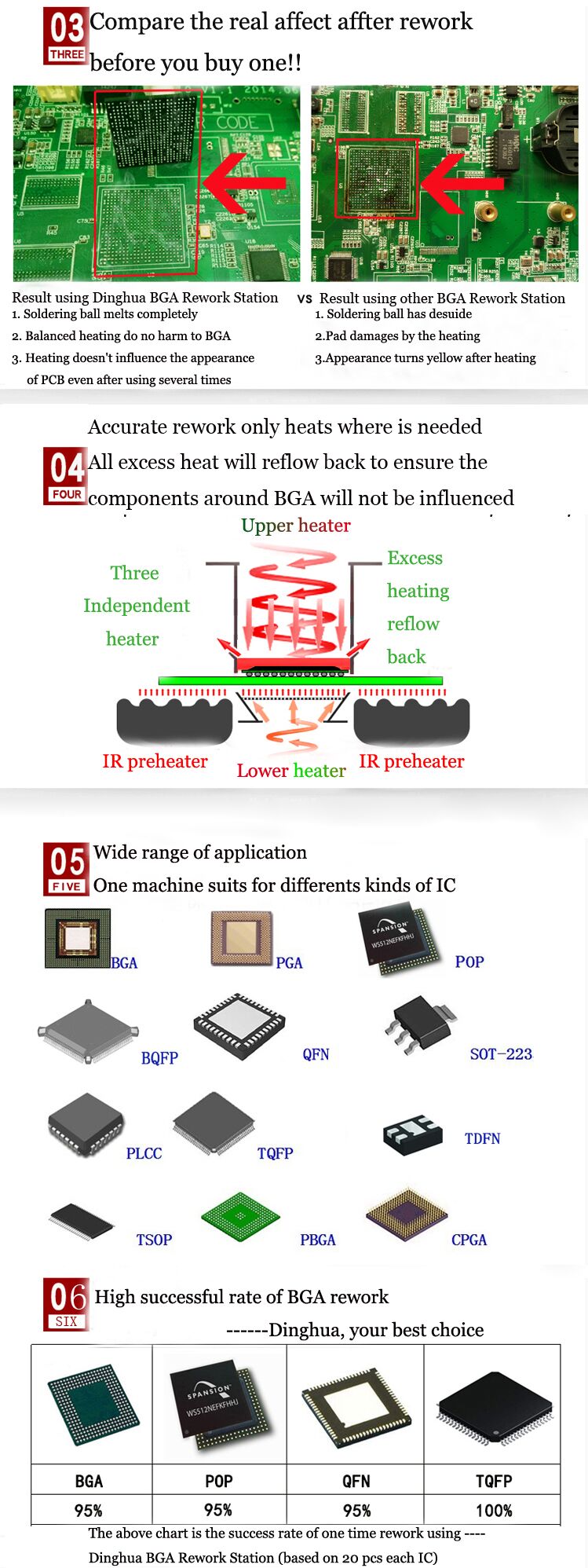

Haum rau txawv yam chips: BGA, PGA, POP, Pop, BQFP, SQFP, TDFN, XOP, PBGA, CPGA, LED Chip.

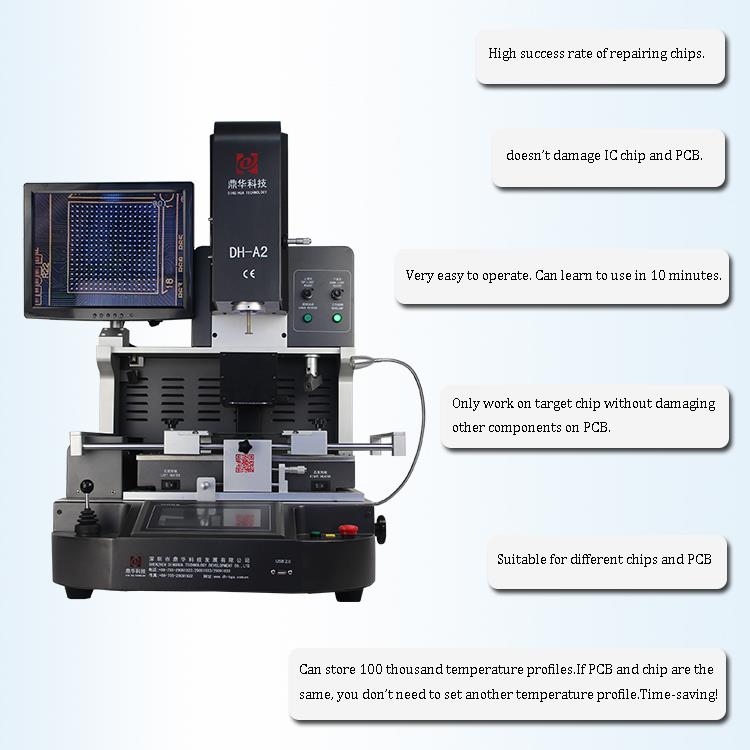

2. Cov khoom nta
• Desoldering, mounting thiab soldering cia.
• Tus nqi ua tiav tau zoo ntawm kev kho tau nyiaj thiab PCB.
• Lub tshuab yuav tsis muaj kev puas tsuaj rau ib puag ncig ib puag ncig ntawm lub hom phiaj nti ntawm pcb vim qhov ntsuas kub nruj.
• Ua kom meej kho qhov muag txheej txheem
zoom hauv / tawm thiab kho kom haum, nruab nrog kev nrhiav aberration execection ntaus ntawv, nrog autofocus thiab software ua haujlwm

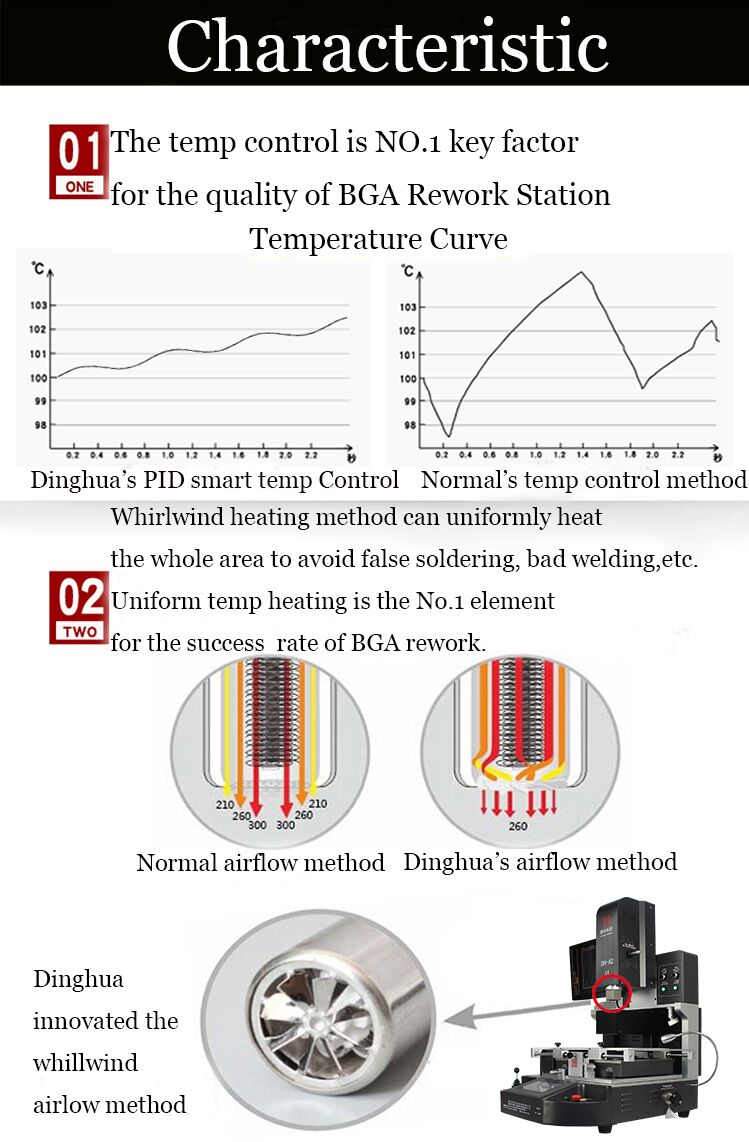

• Peb tus kheej tswj kev ua cua sov. Nws tuaj yeem ua kom sov PCB Board thiab BGA chips tib lub sijhawm. Thiab tus thib peb iRter
Yuav ua kom preheat rau PCB pawg thawj coj los ntawm hauv qab tusyees, kom tsis txhob muaj PCB deformation thaum lub sijhawm kho. Tag nrho peb cua sov
tuaj yeem kub ntawm nws tus kheej ywj pheej. Sab saum toj thiab hauv qab cua sov yog cov cua sov kub, qhov thib peb yog thaj chaw preheating infrared.
3. Kev Qhia Tshwj Xeeb
| Hwjchim | 5300W |
| Sab saum cua | Huab Cua Kub 1200W |
| Hauv qab rhaub | Huab cua kub 1200W. Infrared 2700w |
| Kev pab fais fab | AC220V ± 10% 50 / 60HZ |
| Qho loj dav | L530 * W670 * H790 hli |
| Muab tso rau | V-Groove PCB txhawb nqa, thiab nrog rau universal fixture |
| Tswj Qhov Kub | K Hom Thermocouple, Kaw Voj tswj, kev ywj pheej cua sov |
| Raug Kev Ntsuas Kub | ± 2 Qib |
| PCB Loj | Max 450 * 490 hli, Min 22 * 22 hli |
| Workbench nplua-tuning | ± 15mmm rau pem hauv ntej / rov qab .+15 mm txoj cai / sab laug |
| BGA Nti | 80 * 80-1 * 1 hli |
| Yam tsawg kawg nti nti | 0.15 hli |
| TEMP Sensor | 1 (yeem) |
| Qhov hnyav | 70Kg |

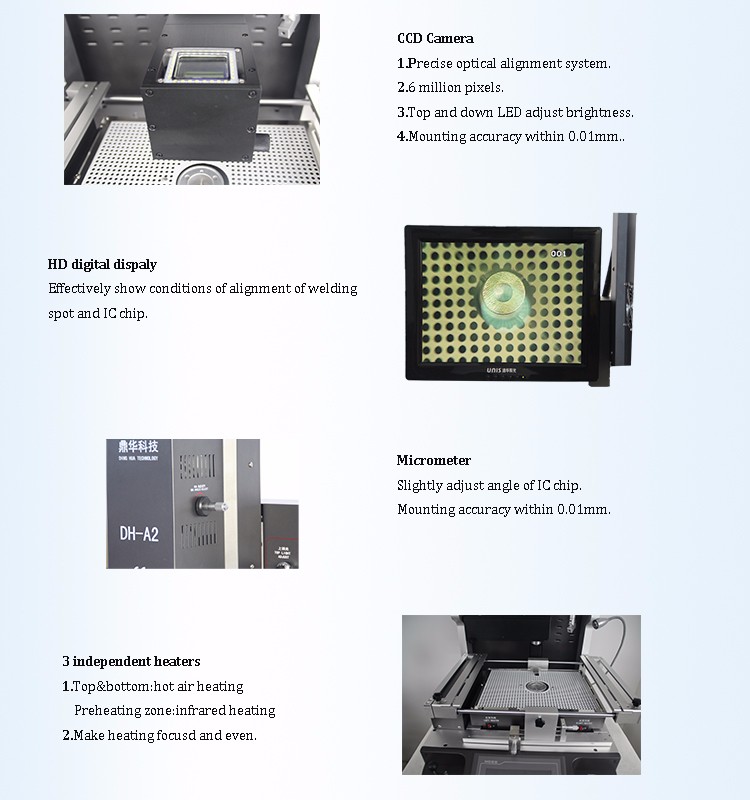

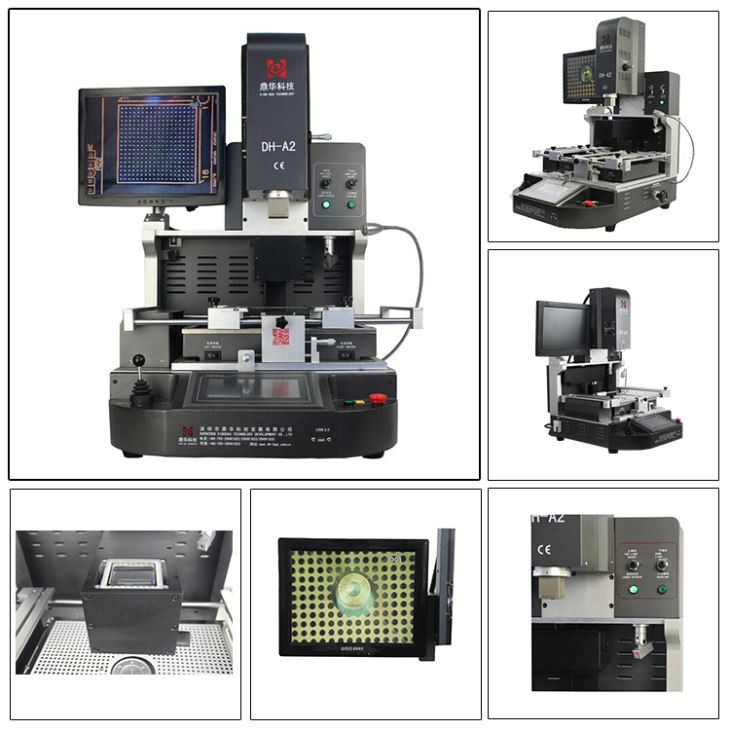

4. Cov ntsiab lus ntawm Optical Macbook BGA cov chaw nres tsheb khiav ceev
- Lub koob yees duab CCD (Prenise kho qhov muag txheej txheem);
- Hd digital zaub;
- Micometer (kho lub kaum sab xis ntawm lub nti);
- 3 Cov cua sov ywj siab (huab cua kub & infrared);
- Laser tso;

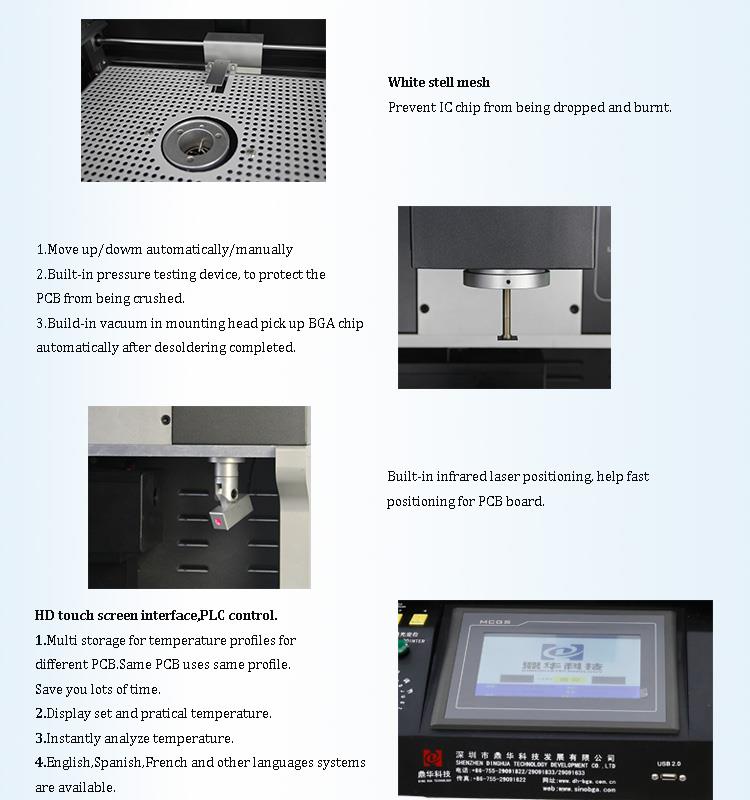

- HD touchscreen interface, plc tswj;

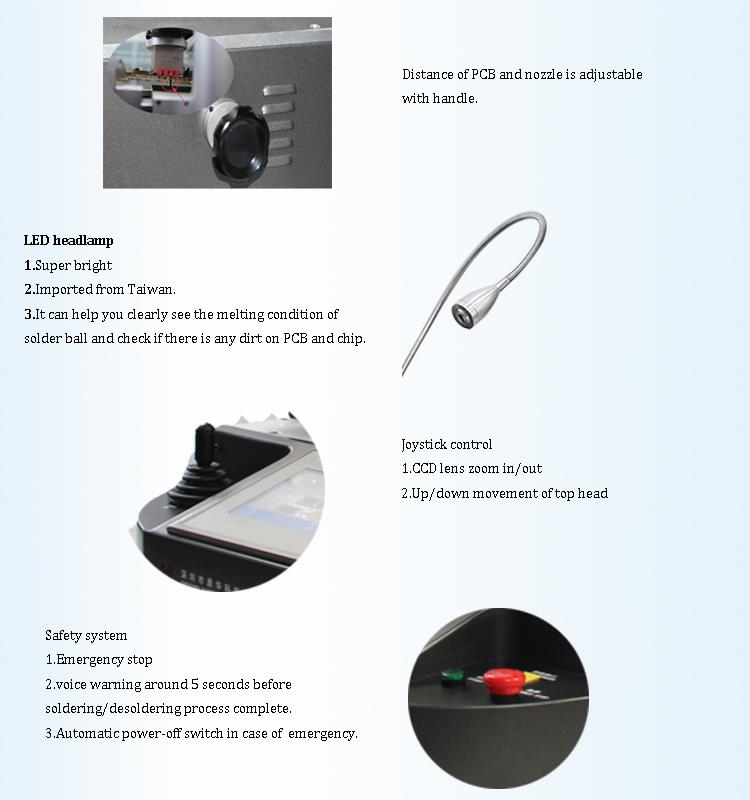

- LED Headlamp;
- Joystick tswj.
5. Vim li cas xaiv peb lub tshuab kho kho tshiab ntawm kev ua haujlwm?
6. Daim ntawv pov thawj
Txhawm rau muab cov khoom lag luam zoo, Shenzhen Dinghua thev naus laus zis thev naus laus zis Co., Ltd yog thawj zaug kom hla UL,
E-Mark, CCC, FCC, CE, ROHS daim ntawv pov thawj. Meanwhile, txhawm rau txhim kho thiab zoo meej cov txheej txheem zoo, Dinghua tau dhau los
ISO, GMP, FCCA, thiab C-TPAT rau ntawm cov ntawv pov thawj.

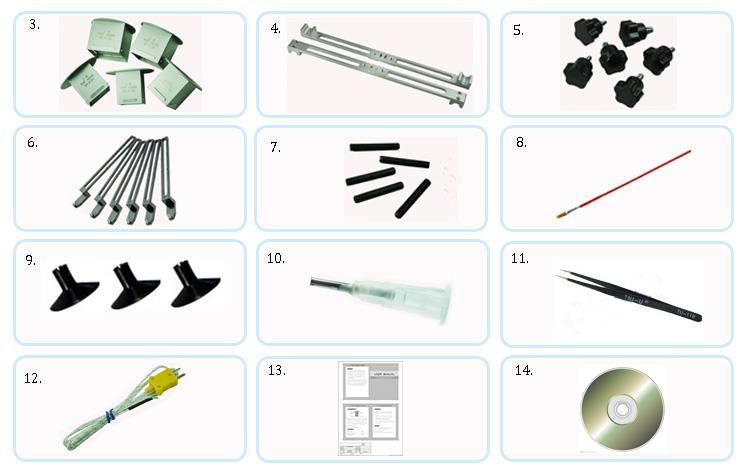

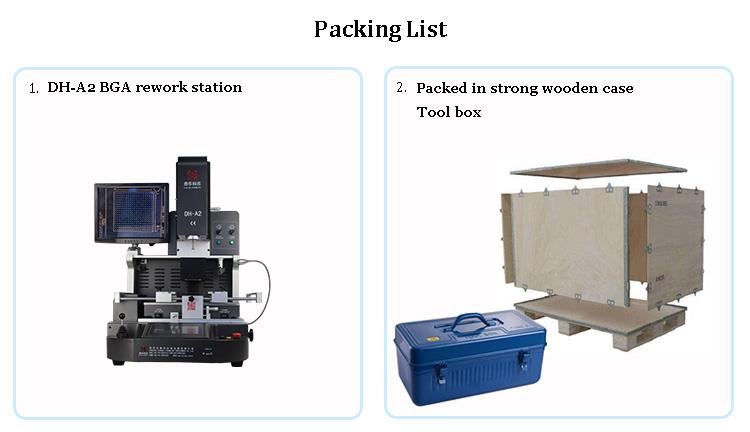

7. Cov Khoom Noj & Khoom Noj
8. Tiv tauj peb
Email: john@dh-kc.com
WhatsApp / WeChat / Mob: {+86 157 6811 4827
9. Cov Lus Nug
Q1: Lub taub hau sab saum toj ntawm lub tshuab poob rau nrawm thiab tawg lub nti thiab PCB?
A1: Txhawm rau tiv thaiv tus PCB thiab nti los ntawm kev tsoo, muaj ib lub siab sim ntsuas hauv lub taub hau mounting.
Thaum lub siab sim ntsuas cov cuab yeej ntsuas ib qho siab, lub taub hau sab saum toj ntawm lub tshuab yuav nres tau.
Q2: Lub sijhawm cov txheej txheem cua sov, qhov kub kub siab heev. Tom qab cov txheej txheem cua sov tiav lawm, kuv puas yuav tsum tau xaiv ib nti ntawm PCB?
A2: Built-in nqus tsev nyob rau hauv lub taub hau mounting khaws BGA nti cia li ua tiav tiav.
Q3: Yuav muaj dab tsi tshwm sim yog hais tias cov nti tau nqis hauv qhov chaw sov hluav taws xob yuam kev? Nws puas yuav nyuaj heev coj nws tawm? Nws puas yuav raug hlawv?
A3:Qhov chaw ua ntej yog them los ntawm cov ntxaij hlau. Qhov no yog tiv thaiv cov chips kom poob rau hauv thaj chaw kub kub.
