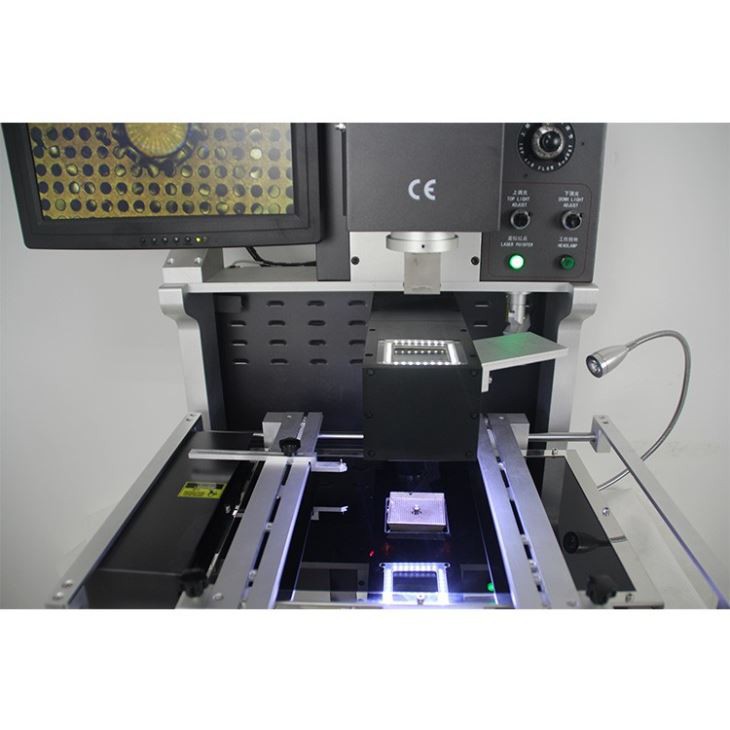

IC Chips Infrared Preheating System Vuam Rooj

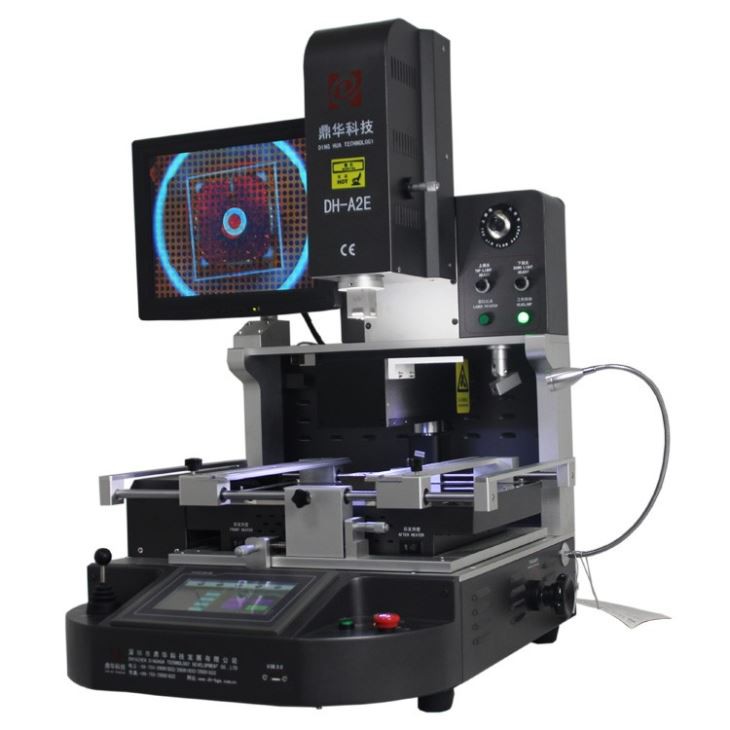

                    IC Chips Infrared Preheating System Vuam Rooj DH-A2E



Reballing BGA Pob thiab tin:



Reballing yog cov txheej txheem siv hauv kev kho hluav taws xob los hloov cov khoom siv rau ntawm Ball Grid Array (BGA) nti. Cov txheej txheem suav nrog tshem cov pob qub, ntxuav cov nti saum npoo, thiab muab cov khoom tshiab, zoo siab rau hauv nti.

Cov khoom siv hauv reballing feem ntau yog ua los ntawm tin los yog tin-lead alloy. Cov ntaub ntawv no raug xaiv rau lawv lub peev xwm los tsim kev sib raug zoo nrog cov nti thiab rau lawv cov ntsiab lus melting tsawg, uas ua rau cov txheej txheem reballing yooj yim dua.

Tin yog ib qho kev xaiv vim nws yog lub teeb yuag thiab muaj hluav taws xob zoo. Txawm li cas los xij, tin-lead alloy pob yog nyiam thaum BGA yuav raug kub hnyiab, xws li hauv kev siv tsheb lossis kev lag luam.

Zuag qhia tag nrho, kev xaiv ntawm tin thiab tin-lead alloy pob yog nyob ntawm cov kev xav tau tshwj xeeb ntawm cov khoom siv hluav taws xob tau kho.



Specifications

1	Tag nrho lub zog	5200w
2	3 lub tshuab hluav taws xob ywj pheej	Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w
3	Qhov hluav taws xob	AC220V ± 10% 50/60Hz
4	Hluav taws xob qhov chaw	7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem kho qhov muag CCD system + laser positioning
5	Kev tswj qhov kub thiab txias	K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree.
6	PCB positioning	V-groove + universal fixture + movable PCB txee
7	Muaj feem xyuam PCB loj	Max 370x410mm Min 22x22mm
8	Muaj feem xyuam BGA loj	2x2mm ~ 80x80mm
9	Qhov ntev	600x700x850mm (L * W * H)
10	Net nyhav	70 Kg

Daim ntawv thov



Dav siv nyob rau hauv chip qib kho hauv cov khoom hauv qab no:
1. Laptop & desktop PCBA
2. Game console, xws li Xbox ib, Chaw Ua Si Chaw Ua Si 4 motherboards
3. Txawb xov tooj PCBA, xws li iPhone motherboards
4. TV & TV Set-top box motherboard
5. Neeg rau zaub mov, tshuab luam ntawv, koob yees duab thiab lwm yam motherboard



Yam ntxwv



IC ChipsInfrared Preheating SystemVuam Table DH-A2E

1. 1, Siv dav hauv kev kho chip-theem hauv xov tooj ntawm tes, cov tswj hwm me me lossis cov niam txiv me me thiab lwm yam.

2. 2, Rework BGA, CCGA, QFN, CSP, LGA, SMD, LED, thiab lwm yam.

3. 3, Tsis siv neeg desoldering, mounting, thiab soldering. Tsis siv neeg nqa nti thaum desoldering tiav.

4. 4, HD CCD kho qhov muag alignment system rau precisely. mounting BGA thiab cov khoom.

5. 5, BGA mounting raug nyob rau hauv 0.01mm, kho tus nqi 99.9%

6. 6, Superior kev nyab xeeb muaj nuj nqi nrog kev tiv thaiv thaum muaj xwm ceev.

7. 7, cov neeg siv-phooj ywg ua haujlwm, ntau lub luag haujlwm ergonomic system.

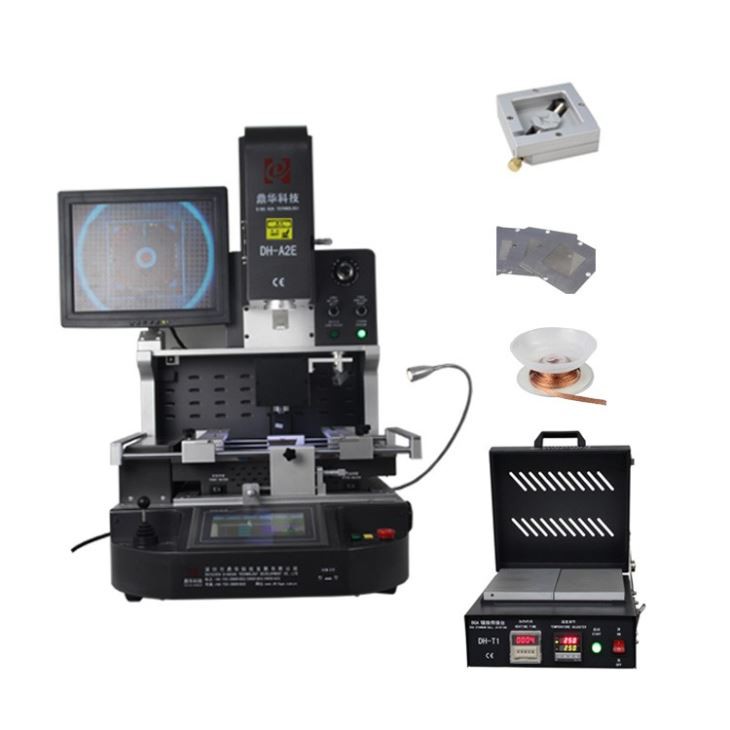

Packing List:

Cov ntaub ntawv: Cov ntaub ntoo muaj zog + ntoo tuav + pov thawj pearl paj rwb nrog zaj duab xis

1pc IC Chips Infrared Preheating System Vuam Rooj

1pc txhuam cwj mem

1pc Phau ntawv qhia

1pc ua cd video

3pcs saum nozzles

2 pcs hauv qab nozzles

6pcs universal fixtures

6pcs fastened screws

4pcs kev them nyiaj yug ntsia hlau

Sucker loj: Dia 2,4,8,10,11mm

Sab hauv hexagon spanner: M2/3/4

Loj: 81 * 76 * 85CM





Qhov hnyav tag nrho: 115 kg



1. xa los ntawm huab cua DHL, FedEx, TNT, EMS, UPS.

2. xa los ntawm hiav txwv ntawm tus nqi pheej yig dua, tab sis nws yuav siv sij hawm ntev dua

3. Hnub xa khoom yog nyob rau hauv 5-7 hnub tom qab tau txais tag nrho cov nyiaj them poob haujlwm.

1. Tag nrho cov tshuab yuav raug kuaj zoo rau 3 hnub ua ntej xa khoom

2. Tag nrho lub tshuab warranty rau 1 xyoo
