SMD Rework Chaw nres tsheb nrog lub koob yees duab

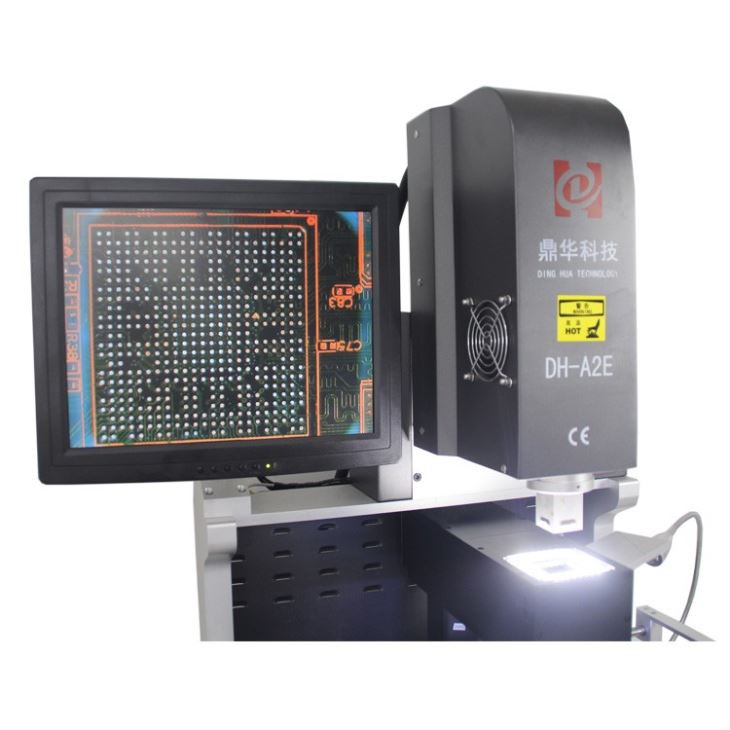

1. Optical Alignment System
2. Laser Centering Indicator
3. Infrared Preheating
4. Ob lub cua kub cua sov
Hauj lwm lawm

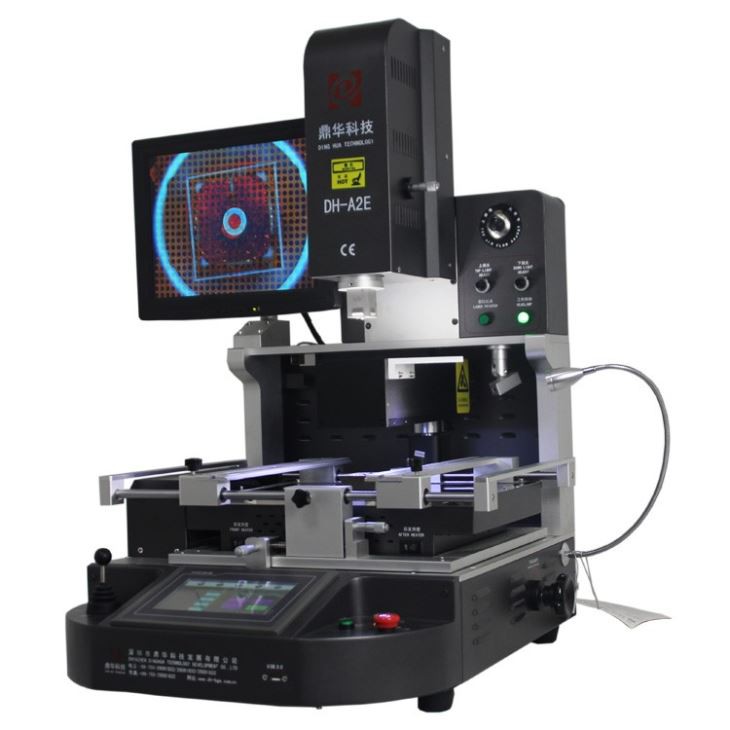

SMD Rework Chaw Nres Tsheb Nrog Lub Koob Yees Duab DH-A2E
Ib qho SMD Rework Chaw Nres Tsheb nrog Lub Koob Yees Duab (Nto Mounted Device Rework Chaw nres tsheb) yog cov cuab yeej tshwj xeeb
siv hauv kev kho hluav taws xob thiab kev tsim khoom los tshem tawm thiab hloov cov khoom ntawm cov ntawv luam tawm Circuit Board (PCBs).
Nws yog ib qho khoom siv uas ua kom sov cov khoom siv los hloov los ntawm kev siv cua kub, thaum tseem muaj cov khoom siv hauv
lub koob yees duab tso cai rau kom pom kev zoo dua.
Desoldering nti-qib
Specifications:
| 1 | Tag nrho lub zog | 5200w |
| 2 | 3 lub tshuab hluav taws xob ywj pheej | Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w |
| 3 | Qhov hluav taws xob | AC220V ± 10% 50/60Hz |
| 4 | Hluav taws xob qhov chaw | 7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem optical CCD system + laser positioning |
| 5 | Kev tswj qhov kub thiab txias | K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree. |
| 6 | PCB positioning | V-groove + universal fixture + movable PCB txee |
| 7 | Muaj feem xyuam PCB loj | Max 370x410mm Min 22x22mm |
| 8 | Muaj feem xyuam BGA loj | 1 * 1mm ~ 80x80mm |
| 9 | Qhov ntev | 600x700x850mm (L * W * H) |
| 10 | Net nyhav | 70 Kg |
Daim ntawv thov:
Yam ntxwv:
SMD Rework Chaw Nres Tsheb Nrog Lub Koob Yees Duab DH-A2E
DH-A2E SMD rework chaw nres tsheb nrog lub koob yees duab muaj ob lub cua kub cua sov, ib sab saum toj, thiab ib tug hauv qab, kom tag nrho
controllable desoldering thiab resoldering uas muab cov txiaj ntsig zoo yam tsis muaj kev hloov pauv txawm tias qhov tsawg tshaj plaws
cov khoom.
Rau preheating, hauv qab cua kub cua sov yog ib puag ncig los ntawm 2700W "Rapid IR" hauv qab dej. Qhov no IR
preheater maj mam nce qhov kub ntawm lub PC los yog LED substrate kom tiv thaiv warpage thiab txo kev ntxhov siab
ntawm cov khoom thiab cov pob qij txha uas nyob ib sab ntawm qhov chaw ua haujlwm. Cov cua sov infrared yog tag nrho nyob rau hauv
iav-shielded compartment uas sai sai dissipates tshav kub thiab tiv thaiv cov khib nyiab los ntawm poob mus rau hauv lub ntsiab,
ua kom tus neeg teb xov tooj muaj kev nyab xeeb, txo kev txij nkawm, thiab tu yooj yim.
Packing List:
Cov ntaub ntawv: Cov ntaub ntoo muaj zog + ntoo tuav + pov thawj pearl paj rwb nrog zaj duab xis
1pc SMD Rework Chaw nres tsheb nrog lub koob yees duab
1pc txhuam cwj mem
1pc Phau ntawv qhia
1pc ua cd video
3pcs saum nozzles
2 pcs hauv qab nozzles
4pcs universal fixtures
4pcs fastened screws
5pcs kev them nyiaj yug ntsia hlau
Sucker loj: Dia 2,4,8,10,11mm
Sab hauv hexagon spanner: M2/3/4
Loj: 81 * 76 * 85CM
Qhov hnyav tag nrho: 115 kg
Kev xa khoom yooj yim
• TNT
•DHL
• FedEx
• UPS
•EMS
• LOS YOG SEA
Video ntawm BGA rework chaw nres tsheb:
