Laser Positioning BGA Vuam Cov Cuab Yeej

1.kub cua nozzles2.k sensor kaw voj tswj3.v-groove pcb kev them nyiaj yug 4.hd xim kho qhov muag alignment system

Xa kev nug

Hauj lwm lawm

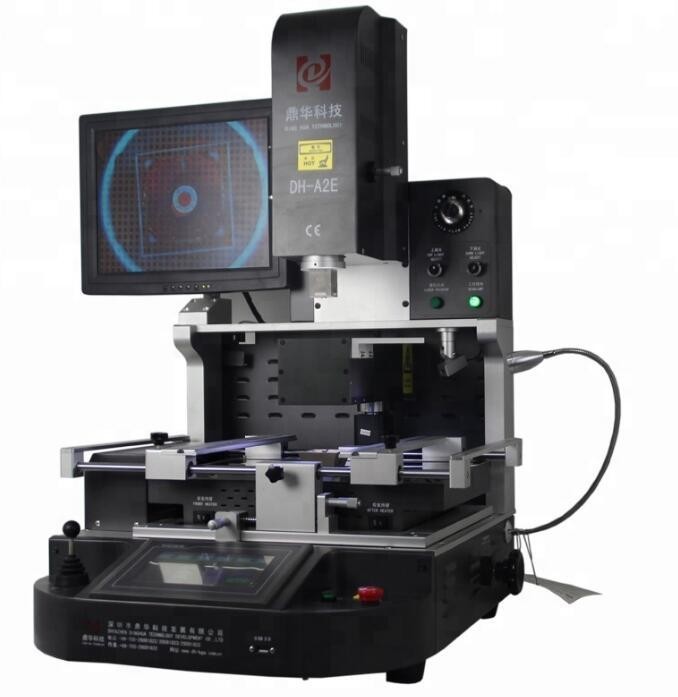

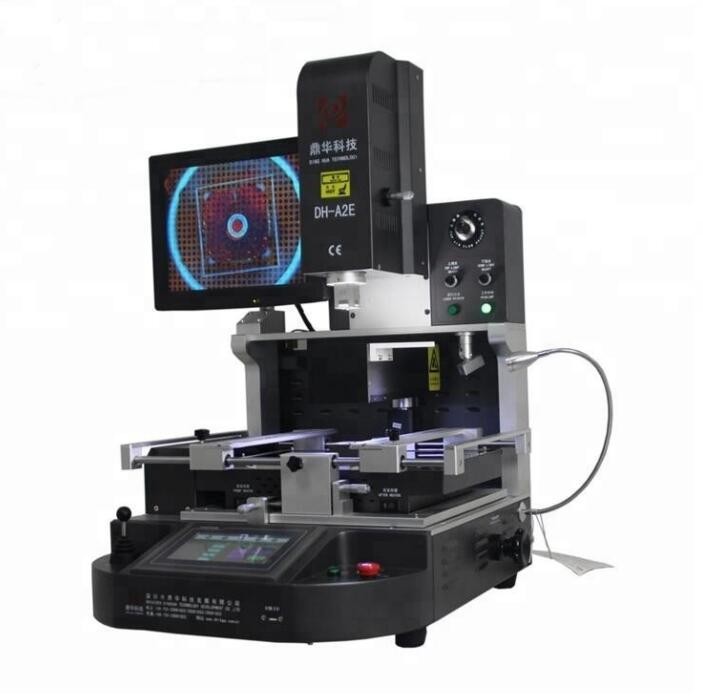

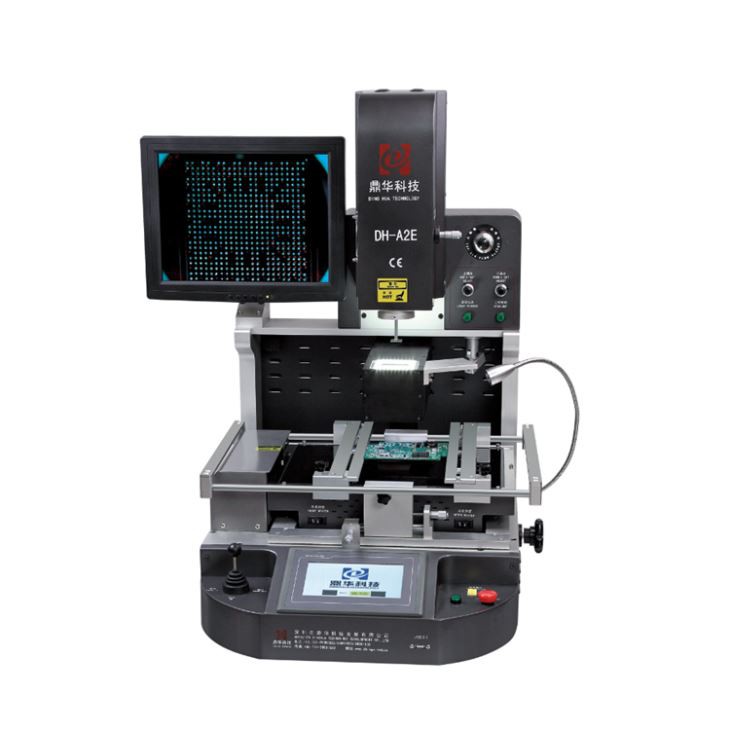

Laser Positioning BGA Vuam Cov Cuab Yeej DH-A2E

Ua Haujlwm Demo:

Laser Positioning BGA Vuam Cov Cuab Yeej yog qhov tseem ceeb hauv kev lag luam hluav taws xob rau kev tso npe ncaj ncees, kev sib tw, thiab kev sib txuas ntawm BGA cov khoom ntawm PCBs. Lawv siv tshuab laser los xyuas kom meej qhov chaw thiab tau koom ua ke nrog cov chaw ua haujlwm rov ua haujlwm rau kev tswj cov cua sov thiab soldering. Cov yam ntxwv tseem ceeb muaj xws li laser alignment systems, non-contact sensors, thiab kaw-voj kub tswj, uas ua ke txhim kho precision thiab efficiency. Cov cuab yeej no zoo tagnrho rau kev kho cov khoom siv hluav taws xob siab, kev tsim qauv, thiab kev tsim khoom me me, muab ntau yam thiab kev ntseeg siab hauv kev tuav ntau yam BGA hauv cov khoom siv hluav taws xob siab heev.

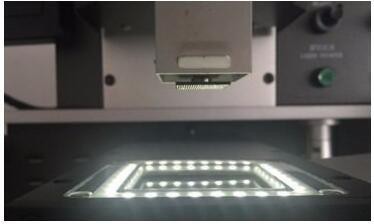

Desoldering BGA Pob thiab tin

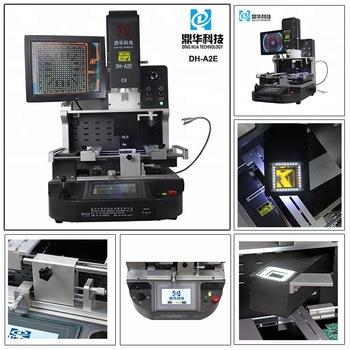

Laser Positioning BGA Welding Tools

Specifications:

1	Tag nrho lub zog	5200w
2	3 lub tshuab hluav taws xob ywj pheej	Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w
3	Qhov hluav taws xob	AC220V ± 10% 50/60Hz
4	Hluav taws xob qhov chaw	7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem optical CCD system + laser positioning
5	Kev tswj qhov kub thiab txias	K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree.
6	PCB positioning	V-groove + universal fixture + movable PCB txee
7	Muaj feem xyuam PCB loj	Max 370x410mm Min 22x22mm
8	Muaj feem xyuam BGA loj	2x2mm ~ 80x80mm
9	Qhov ntev	600x700x850mm (L * W * H)
10	Net nyhav	70 Kg

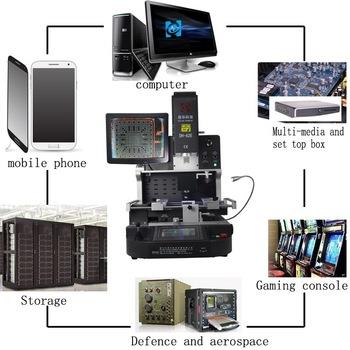

Daim ntawv thov:

Laser Positioning BGA Welding Tools

Yam ntxwv:

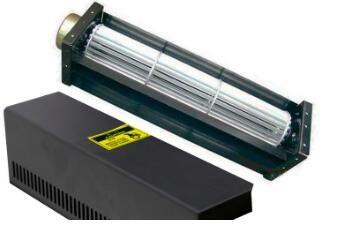

A2E 内部发热系统

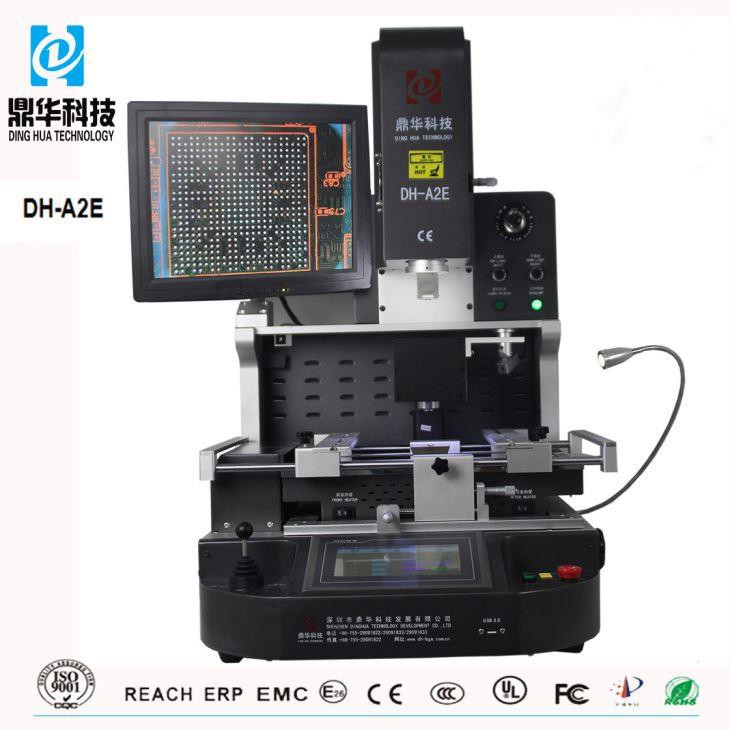

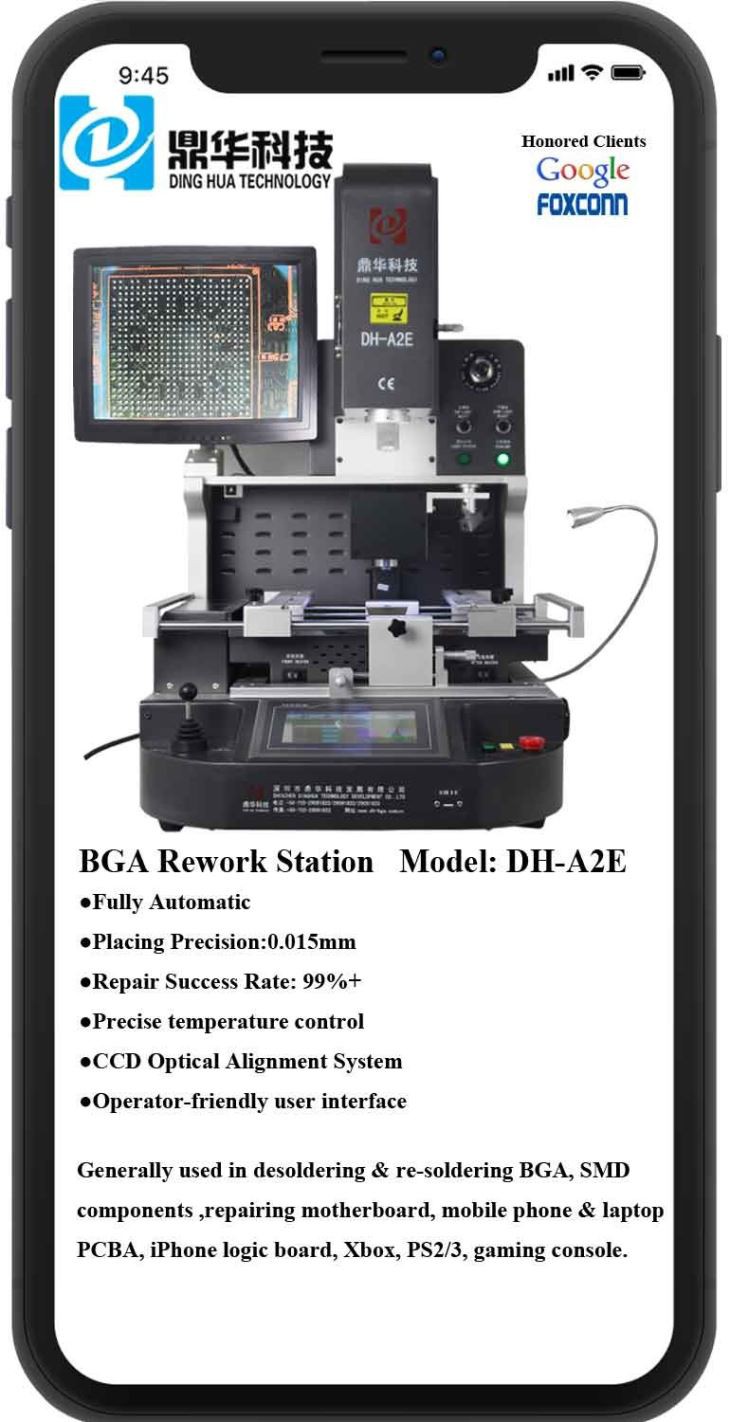

Laser Positioning BGA Vuam Cov Cuab Yeej DH-A2E

CovDH-A2Eyog qhov zoo tshaj plaws BGA rework system muaj nyob rau hauv kev ua lag luam hnub no. Nws tuaj yeem yooj yim nruab thiab tshem tawm BGA, QFN, µBGA / CSP, Flip Chip, thiab lwm yam SMDs. Featuring 1200W cua kub cua sov sab saum toj thiab 2700W IR hauv qab preheater, nws txuag koj ntau txhiab tus nqi ntxiv. Nws siv lub tshuab hluav taws xob tshwj xeeb infrared los tswj thiab siv cov cua sov, tiv thaiv cov khoom nyob ib sab. Siv cov khoom zoo, tshwj xeeb tsim IR thermal sensor, cov txheej txheem yog kaw-voj kub tswj, siv cov kev ntsuas tsis sib cuag.

Product imga2
