Bga Rework Chaw nres tsheb rau kho Laptop
1 Daim Min. Order Dimensions: 600 * 700 * 580mm Nyhav: 117KG Rated Peev Xwm: 5300W Tam sim no: 20A Voltage: AC 110 ~ 240 V ± 10% 50 / 60Hz Rated Lub Luag Haujlwm: 100%
Hauj lwm lawm
BgaRework Chaw nres tsheb rau kho Laptop
Tsis muaj
|
1 |
Tag nrho lub zog |
5300w |
|
2 |

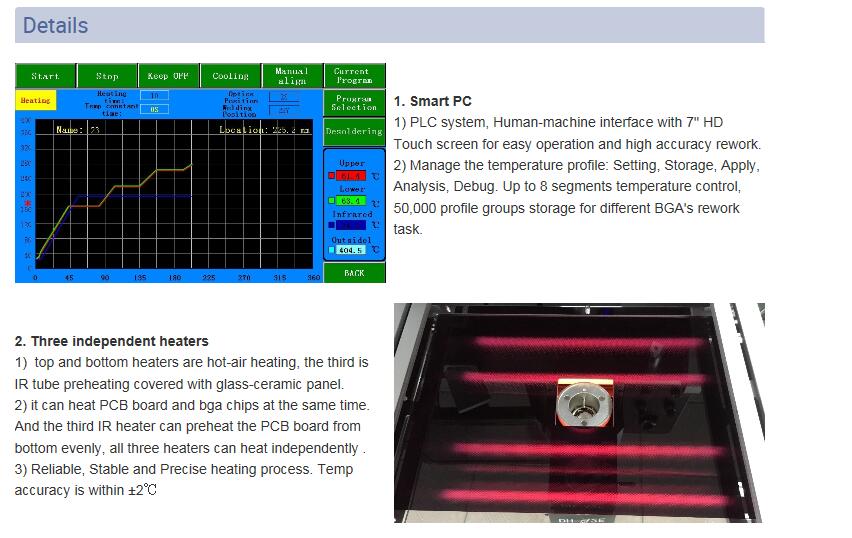

3 lub tshuab hluav taws xob ywj pheej |
Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w |
|
3 |
Qhov hluav taws xob |
AC220V ± 10% 50/60Hz |
|
4 |
Hluav taws xob qhov chaw |
7 nti kov npo + ntse temp tswj module + stepper tsav tsav + ywj siab Mitsubishi PLC + LCD zaub + optical CCD system + laser positioning + muaj joystick |
|
5 |
Kev tswj qhov kub thiab txias |
K-Sensor kaw-loop + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree. |
|
6 |
PCB positioning |
V-groove + universal fixture + movable PCB txee |
|
7 |
Muaj feem xyuam PCB loj |
Max 370x410mm Min 22x22mm |
|
8 |
Muaj feem xyuam BGA loj |
2x2mm ~ 80x80mm |
|
9 |
Qhov ntev |
600x700x850mm (L * W * H) |
|
10 |
Net nyhav |
70 Kg |
DH-A2E Tsis Siv Neeg BGA Rework Chaw Nres Nkoj Nta
- Tsis Siv Neeg Desoldering, Mounting, thiab Soldering: Yuav khaws cov nti tom qab desoldering tiav.
- Tsis Siv Neeg Chip Feeding System: Ua kom muaj kev pub noj chip automated thaum lub sijhawm ua haujlwm.
- HD CCD Optical Alignment System: Xyuas kom meej BGA thiab tivthaiv mounting. CCD lens nta tsis siv neeg folding thiab ncab.

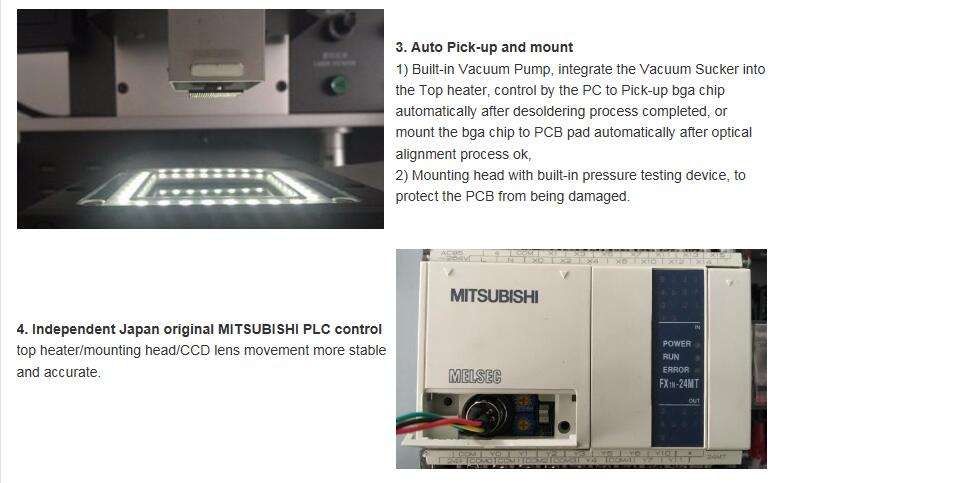

- Mitsubishi PLC Tswj: Siv ib qho kev ywj pheej Mitsubishi PLC los tswj kev txav, ua kom ruaj khov thiab raug.

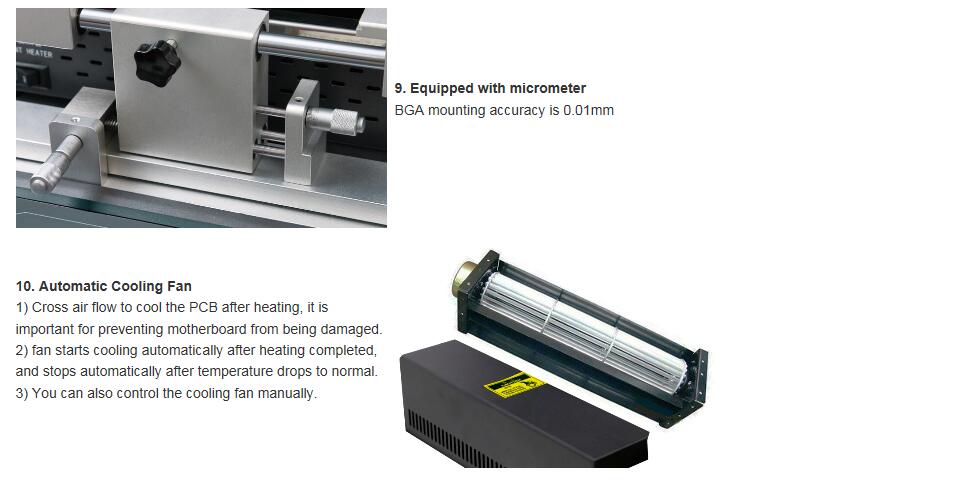

- BGA Mounting Accuracy: Ua tiav qhov tseeb mounting nyob rau hauv 0.01mm, nrog kev kho kom zoo ntawm 99.9%.

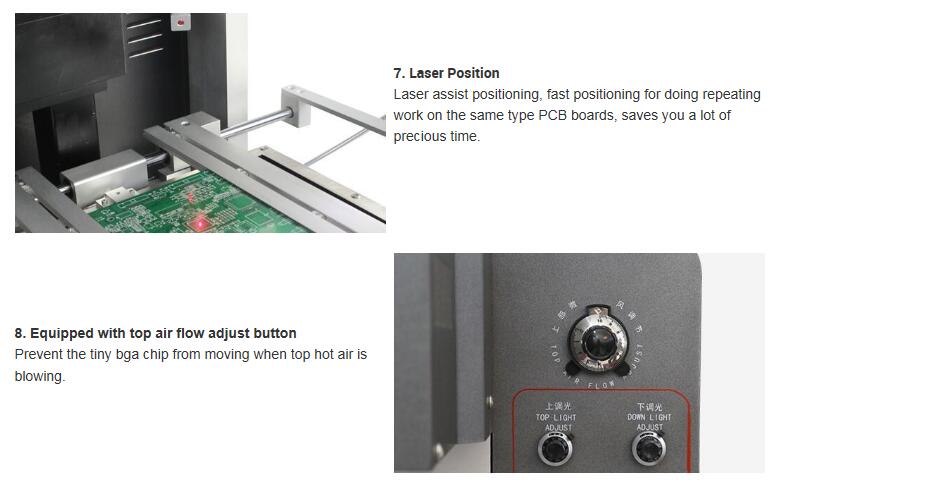

- Laser Positioning: Muab qhov chaw nrawm thiab raug rau BGA chips thiab motherboards.
- Sab saum toj Airflow Adjustment: Nruab nrog lub khawm airflow adjustable kom tau raws li qhov xav tau ntawm cov chips me.
- Superior Safety Nta: suav nrog kev tiv thaiv thaum muaj xwm txheej ceev kom txhim kho kev nyab xeeb.
- Tus neeg siv-phooj ywg ua haujlwm: nta ib qho kev ua haujlwm zoo ergonomic kom yooj yim thiab siv tau zoo.

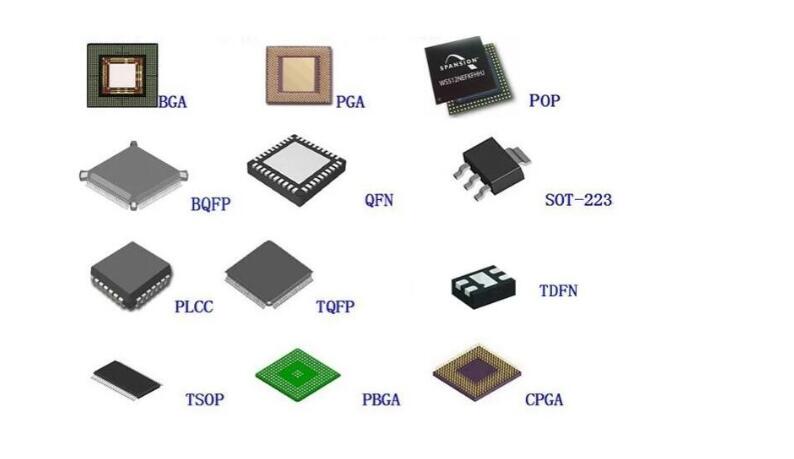

Dab tsi tuaj yeem kho tau?
Ntim cov ntsiab lus
Daim ntawv pov thawj
Peb qhov kev pabcuam
1. Peb nyob online 24 teev;
2. Muab cov khoom seem dawb thiab kev pabcuam hauv ib xyoos lav
3. Kev Pabcuam Technology: Muab Demo ua haujlwm video rau kev cob qhia; Ua siab zoo caw koj tuaj xyuas peb lub Hoobkas thiab txaus siab rau kev cob qhia dawb
4. Kev pab cuam tom qab muag zoo heev;
5. Lub neej ntev kev txhawb nqa los ntawm cov neeg ua haujlwm tau zoo thiab cov engineers.
