Computer Motherboard Rework Tool Kit

1.laser centering indicator2.infrared cua sov system3.HD kov screen interface4.optical alignment muaj nuj nqi

Xa kev nug

Hauj lwm lawm

Computer Motherboard Rework Tool Kit DH-A2E

Kev Ua Haujlwm Demo

Soldering BGA Pob thiab Tin

A2E Assemble

Specifications

1	Tag nrho lub zog	5200w
2	3 lub tshuab hluav taws xob ywj pheej	Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w
3	Qhov hluav taws xob	AC220V ± 10% 50/60Hz
4	Hluav taws xob qhov chaw	7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem optical CCD system + laser positioning
5	Kev tswj qhov kub thiab txias	K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree.
6	PCB positioning	V-groove + universal fixture + movable PCB txee
7	Muaj feem xyuam PCB loj	Max 370x410mm Min 22x22mm
8	Muaj feem xyuam BGA loj	2x2mm ~ 80x80mm
9	Qhov ntev	600x700x850mm (L * W * H)
10	Net nyhav	70 Kg

Daim ntawv thov

Yam ntxwv

A2E 内部发热系统

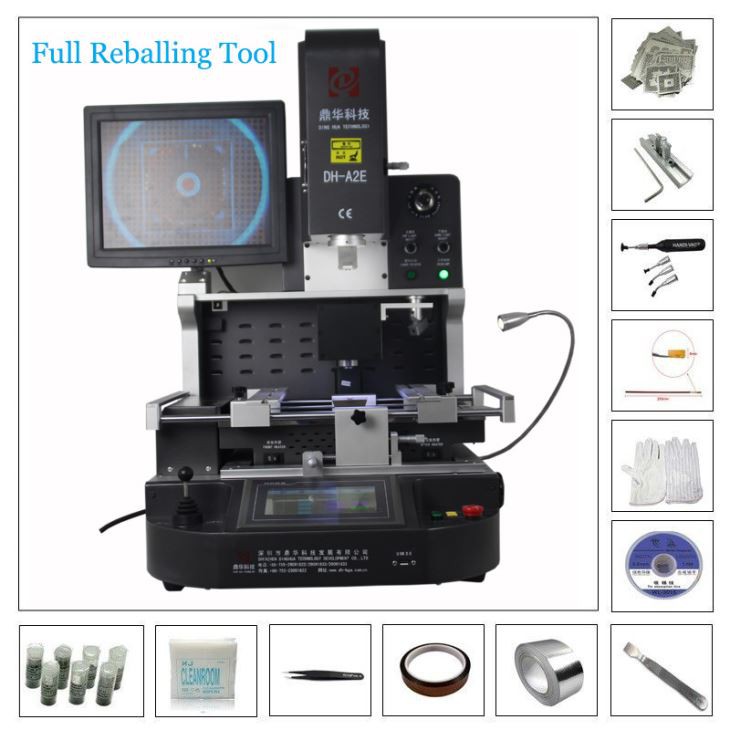

Computer Motherboard Rework Tool Kit DH-A2E

yog ib qho kev tshaj lij thiab niaj hnub kev daws teeb meem rau disassembly thiab sib sau ua ke ntawm BGA, uBGA, CBGA, CCGA, CSP, QFN, MLF, PGA systems rau cov neeg siv khoom siv hluav taws xob, Cov cuab yeej tsim los kho lub khoos phis tawj motherboard, daim npav duab, phau ntawv sau, consoles, xov tooj ntawm tes, modules thiab tsheb tsav tsheb ua nyob rau hauv cov hlau lead-acid thiab lead-free soldering technology, tshwj xeeb tshaj yog pom zoo rau kev ua hauj lwm nrog loj PCBs. thiab lub tshuab ua kom txias kom zoo ua kom muaj kev ua haujlwm zoo thiab txo lub sijhawm ntawm kev kub ntxhov ntawm lub rooj tsavxwm kom tsawg.

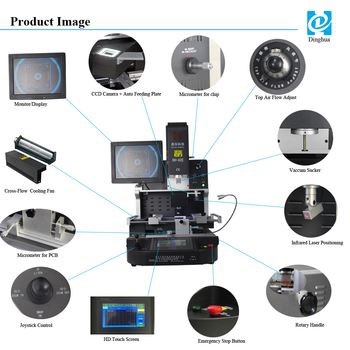

Product imga2
